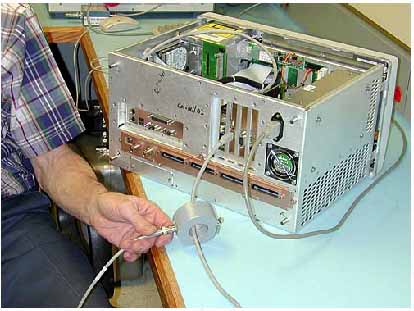

Above: A current probe in use. Current measurements for EMC can be in amps, milli- and micro-amp units.
AMAZON multi-meters discounts AMAZON oscilloscope discounts
Current Probe Transfer Impedance
Instead of doing a precise calculation, it’s okay to measure
the voltage with a known current and frequency passing through the
probe. This measurement is commonly referred to as as
“transfer impedance” ( ZT ).
Search for high-quality new and used EMC accessories at www.ebay.com...put "EMI EMC" into the search box below...
Current Probe – An Example of Application
Let’s say one is responsible for finding the level of probe voltage which corresponds to a CM (common-mode) current on a cable -- one that just meets the radiated-emission regulatory limit.
Clamping the probe around a cable and lumping the net CM (common-mode) current into one wire of length L gives the net radiated emission a distance d away. Notice one must divide by 2, since that result was for two wires carrying a current of Ic . Assumption: FCC-B limit at 30 MHz (100 uV/m) and 1m cable.
