REQUIREMENTS

Most high-quality audio systems are required to operate from a variety of signal inputs, including radio tuners, cassette or reel-to-reel tape recorders, compact disc players and more traditional record player systems. It’s unlikely at the present time that there will be much agreement between the suppliers of these ancillary units on the standards of output impedance or signal voltage which their equipment should offer.

Except where a manufacturer has assembled a group of such units, for which the interconnections are custom designed and there is in-house agreement on signal and impedance levels -- and, sadly, such ready made groupings of units seldom offer the highest overall sound quality available at any given time -- both the designer and the user of the power amplifier are confronted with the need to ensure that his system is capable of working satisfactorily from all of these likely inputs.

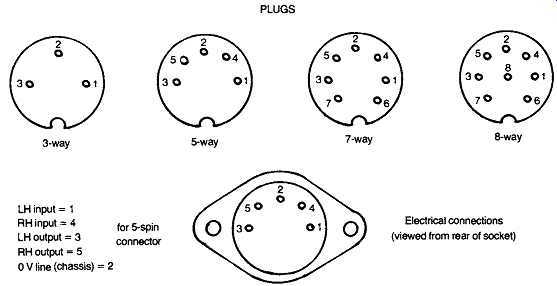

FIG. 1 Common DIN connector configurations.

For this reason, it’s conventional practice to interpose a versatile preamplifier unit between the power amplifier and the external signal sources, to perform the input signal switching and signal level adjustment functions.

This pre-amplifier either forms an integral part of the main power amplifier unit or, as is more common with the higher quality units, is a free-standing, separately powered, unit.

SIGNAL VOLTAGE AND IMPEDANCE LEVELS

Many different conventions exist for the output impedances and signal levels given by ancillary units. For tuners and cassette recorders, the output is either be that of the German DIN (Deutsches Industrie Normal) standard, in which the unit is designed as a current source which will give an output voltage of 1 mV for each 1000 ohms of load impedance, such that a unit with a 100 K-ohm input impedance would see an input signal voltage of 100 mV, or the line output standard, designed to drive a load of 600 ohms or greater, at a mean signal level of 0.775 V RMS, often referred to in tape recorder terminology as 0VU.

Generally, but not invariably, units having DIN type interconnections, of the styles shown in FIG. 1, will conform to the DIN signal and impedance level convention, while those having 'phono' plug/socket outputs, of the form shown in FIG. 2 will not. In this case, the permissible minimum load impedance will be within the range 600 ohms to 10000 ohms, and the mean output signal level will commonly be within the range 0.25-1 V RMS. An exception to this exists in respect of compact disc players, where the output level is most commonly 2 V RMS.

RECORD (VINYL) PICK-UP and INPUTS (aka phono cartridges)

Three broad categories of pick-up cartridge exist: the ceramic, the moving magnet or variable reluctance, and the moving coil. Each of these has different output characteristics and load requirements.

Ceramic piezo-electric cartridges

These units operate by causing the movement of the stylus due to the groove modulation to flex a resiliently mounted strip of piezo-electric ceramic, which then causes an electrical voltage to be developed across metallic contacts bonded to the surface of the strip. They are commonly found only on low-cost units, and have a relatively high output signal level, in the range 100-200 mV at 1 kHz.

Generally the electromechanical characteristics of these cartridges are tailored so that they give a fairly flat frequency response, though with some unavoidable loss of HF response beyond 2 kHz, when fed into a pre-amplifier input load of 47000 ohms.

Neither the HF response nor the tracking characteristics of ceramic cartridges are particularly good, though circuitry has been designed with the specific aim of optimizing the performance obtainable from these units (see Linsley Hood, J., Wireless World, July 1969). However, in recent years, the continuing development of pick-up cartridges has resulted in a substantial fall in the price of the less exotic moving magnet or variable reluctance types, so that it no longer makes economic sense to use ceramic cartridges, except where their low cost and robust nature are of importance.

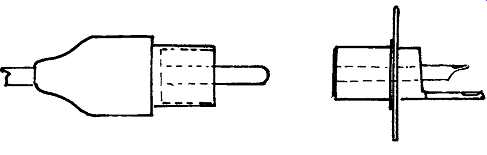

FIG. 2 The phono connector.

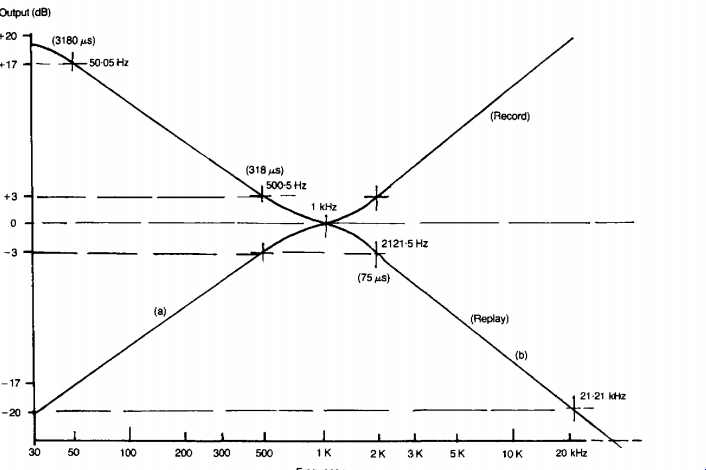

FIG. 3 The RIAA record/replay characteristics used for 33/45 rpm vinyl discs.

Moving magnet and variable reluctance cartridges

These are substantially identical in their performance characteristics, and are designed to operate into a 47 K-ohm load impedance, in parallel with some 200-500 pF of anticipated lead capacitance. Since it’s probable that the actual capacitance of the connecting leads will only be of the order of 50-100 pF, some additional input capacitance, connected across the phono input socket, is customary. This also will help reduce the probability of unwanted radio signal breakthrough.

PU cartridges of this type will give an output voltage which increases with frequency in the manner shown in FIG. 3(a), following the velocity characteristics to which LP records are produced, in conformity with the RIAA recording standards. The pre-amplifier will then be required to have a gain/frequency characteristic of the form shown in FIG. 3(b), with the de-emphasis time constants of 3180, 318 and 75 microseconds, as indicated in the figure.

The output levels produced by such pick-up cartridges will be of the order of 0.8-2 mV/cm/s of groove modulation velocity, giving typical mean outputs in the range of 3-10 mV at 1 kHz.

Moving coil pick-up cartridges These low-impedance, low-output PU cartridges have been manufactured and used without particular comment for very many years. They have come into considerable prominence in the past decade, because of their superior transient characteristics and dynamic range, as the choice of those audiophiles who seek the ultimate in sound quality, even though their tracking characteristics are often less good than is normal for MM and variable reluctance types.

Typical signal output levels from these cartridges will be in the range 0.02-0.2 mV/cm/s, into a 50-75 ohm load impedance. Normally a very low-noise head amplifier circuit will be required to increase this signal voltage to a level acceptable at the input of the RIAA equalization circuitry, though some of the high output types will be capable of operating directly into the high-level RIAA input. Such cartridges will generally be designed to operate with a 47 K-ohm load impedance.

INPUT CIRCUITRY

Most of the inputs to the pre-amplifier will merely require appropriate amplification and impedance transformation to match the signal and impedance levels of the source to those required at the input of the power amplifier. However, the necessary equalization of the input frequency response from a moving magnet, moving coil or variable reluctance pick up cartridge, when replaying an RIAA pre-emphasized vinyl disc, requires special frequency shaping networks.

Various circuit layouts have been employed in the preamplifier to generate the required 'RIAA' replay curve for velocity sensitive pick-up transducers, and these are shown in FIG. 4. Of these circuits, the two simplest are the 'passive' equalization networks shown in (a) and (b), though for accuracy in frequency response they require that the source impedance is very low, and that the load impedance is very high in relation to R1.


FIG. 4 Circuit layouts which will generate the type of frequency response required for RIAA input equalization.

The required component values for these networks have been derived by Livy (Livy, W.H. , Wireless World, Jan. 1957, p. 29) in terms of RC time constants, and set out in a more easily applicable form by Baxandall (P. J. Baxandall, Radio, TV and Audio Reference Book, S.W. Amos [ed.], Newnes-Butterworth Ltd., Ch. 14), in his analysis of the various possible equalization circuit arrangements.

From the equations quoted, the component values required for use in the circuits of Figs 4(a) and (c), would be:

R1/R2 = 6.818 C1.Ä1 = 2187 µs and C2.R2 = 109 µs

For the circuit layouts shown in Figs 4(b) and (d), the component values can be derived from the relationships:

R1/R2 = 12.38 C1.Ä1 = 2937 \xs and C2.R2 = 81.1 µ8

The circuit arrangements shown in Figs 4(c) and (d), use 'shunt' type negative feedback (i.e., that type in which the negative feedback signal is applied to the amplifier in parallel with the input signal) connected around an internal gain block.

These layouts don’t suffer from the same limitations in respect of source or load as the simple passive equalization systems of (a) and (b). However, they do have the practical snag that the value of Rm will be determined by the required p.u. input load resistor (usually 47k-ohm for a typical moving magnet or variable reluctance type of PU cartridge), and this sets an input 'resistor noise' threshold which is higher than desirable, as well as requiring inconveniently high values for R1 and R2.

For these reasons, the circuit arrangements shown in Figs 4(e) and (f), are much more commonly found in commercial audio circuitry. In these layouts, the frequency response shaping components are contained within a 'series' type feedback network (i.e., one in which the negative feedback signal is connected to the amplifier in series with the input signal), which means that the input circuit impedance seen by the amplifier is essentially that of the pick-up coil alone, and allows a lower mid-range 'thermal noise' background level.

The snag, in this case, is that at very high frequencies, where the impedance of the frequency-shaping feedback network is small in relation to RFB, the circuit gain approaches unity, whereas both the RIAA specification and the accurate reproduction of transient waveforms require that the gain should asymptote to zero at higher audio frequencies.

This error in the shape of the upper half of the response curve can be remedied by the addition of a further CR network, C3//?3, on the output of the equalization circuit, as shown in Figs 4(e) and (f). This amendment is sometimes found in the circuit designs used by the more perfectionist of the audio amplifier manufacturers.

Other approaches to the problem of combining low input noise levels with accurate replay equalization are to divide the equalization circuit into two parts, in which the first part, which can be based on a low noise series feedback layout, is only required to shape the 20 Hz-1 kHz section of the response curve. This can then be followed by either a simple passive RC roll-off network, as shown in FIG. 4(g), or by some other circuit arrangement having a similar effect - such as that based on the use of shunt feedback connected around an inverting amplifier stage, as shown in FIG. 4(h) - to generate that part of the response curve lying between 1 kHz and 20 kHz.

A further arrangement, which has attracted the interest of some Japanese circuit designers - as used , for example, in the Rotel RC-870BX preamp., of which the RIAA equalizing circuit is shown in a simplified form in Fig. 4(j) - simply employs one of the recently developed very low noise IC op. amps as a flat frequency response input buffer stage. This is used to amplify the input signal to a level at which circuit noise introduced by succeeding stages will only be a minor problem, and also to convert the PU input impedance level to a value at which a straightforward shunt feedback equalizing circuit can be used, with resistor values chosen to minimize any thermal noise background, rather than dictated by the PU load requirements.

The use of 'application specific' audio ICs, to reduce the cost and component count of RIAA stages and other circuit functions, has become much less popular among the designers of higher quality audio equipment because of the tendency of the semiconductor manufacturers to discontinue the supply of such specialized ICs when the economic basis of their sales becomes unsatisfactory, or to replace these devices by other, notionally equivalent, ICs which are not necessarily either pin or circuit function compatible.

There is now, however, a degree of unanimity among the suppliers of ICs as to the pin layout and operating conditions of the single and dual op. amp. designs, commonly packaged in 8-pin dual-in-line forms. These are typified by the Texas Instruments TL071 and TL072 ICs, or their more recent equivalents, such as the TL051 and TL052 devices - so there is a growing tendency for circuit designers to base their circuits on the use of ICs of this type, and it’s assumed that devices of this kind would be used in the circuits shown in FIG. 4.

An incidental advantage of the choice of this style of IC is that commercial rivalry between semiconductor manufacturers leads to continuous improvements in the specification of these devices. Since these nearly always offer plug-in physical and electrical interchangeability, the performance of existing equipment can easily be up-graded, either on the production line or by the service department, by the replacement of existing op. amp. ICs with those of a more recent vintage, which is an advantage to both manufacturer and user.

MOVING COIL PICK-UP (PU) HEAD AMPLIFIER DESIGN

The design of pre-amplifier input circuitry which will accept the very low signal levels associated with moving coil pick-ups presents special problems in attaining an adequately high signal-to-noise ratio, in respect of the microvolt level input signals, and in minimizing the intrusion of mains hum or unwanted RF signals.

The problem of circuit noise is lessened somewhat in respect of such RIAA equalized amplifier stages in that, because of the shape of the frequency response curve, the effective bandwidth of the amplifier is only about 800 Hz. The thermal noise due to the amplifier input impedance, which is defined by the equation below, is proportional to the squared measurement bandwidth, other things being equal, so the noise due to such a stage is less than would have been the case for a flat frequency response system, nevertheless, the attainment of an adequate S/N ratio, which should be at least 60 dB, demands that the input circuit impedance should not exceed some 50 ohms.

V = V'4KT ÒFR

where bF is the bandwidth, T is the absolute temperature, (room temperature being approx. 300° K), R is resistance in ohms and Kis Boltzmann's constant (1.38 x 10~23). The moving coil pick-up cartridges themselves will normally have winding resistances which are only of the order of 5-25 ohms, except in the case of the high output units where the problem is less acute anyway, so the problem relates almost exclusively to the circuit impedance of the MC input circuitry and the semiconductor devices used in it.

CIRCUIT ARRANGEMENTS

Five different approaches are in common use for moving coil PU input amplification.

Step-up transformer

This was the earliest method to be explored, and was advocated by Ortofon, which was one of the pioneering companies in the manufacture of MC PU designs. The advantage of this system is that it’s substantially noiseless, in the sense that the only source of wide-band noise will be the circuit impedance of the transformer windings, and that the output voltage can be high enough to minimize the thermal noise contribution from succeeding stages.

The principal disadvantages with transformer step-up systems, when these are operated at very low signal levels, are their proneness to mains 'hum' pick up, even when well shrouded, and their somewhat less good handling of 'transients', because of the effects of stray capacitances and leakage inductance. Care in their design is also needed to overcome the magnetic non-linearities associated with the core, which will be particularly significant at low signal levels.

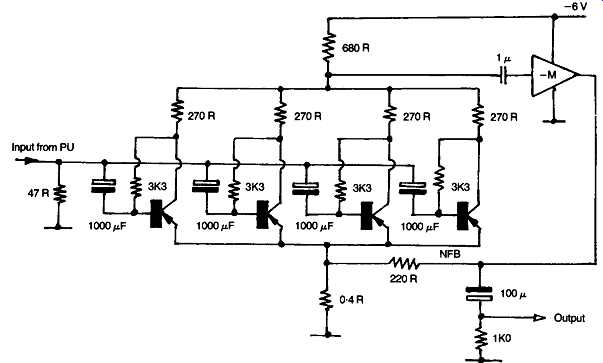

FIG. 5 Ortofon MCA-76 head amplifier.

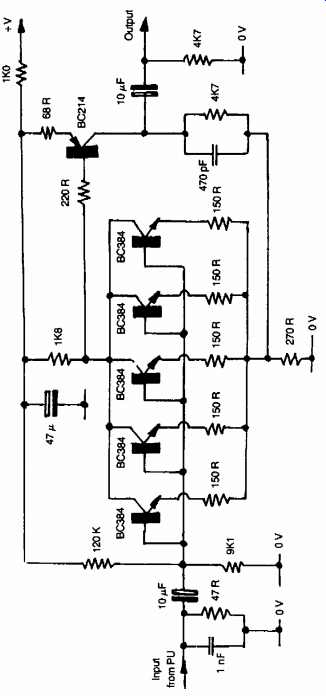

FIG. 6 The Naim NAC 20 moving coil head amplifier.

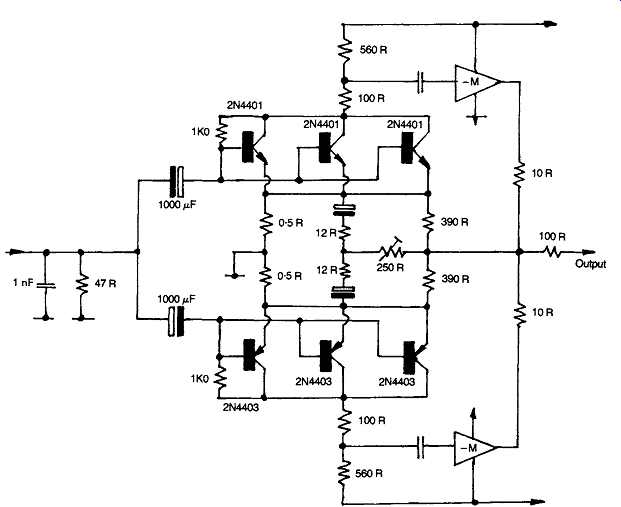

FIG. 7 Braithwaite RA14 head amplifier. (Output stage shown in a simplified form.)

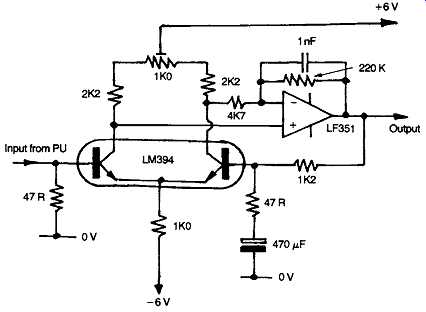

FIG. 8 Head amplifier using LM394 multiple transistor array.

Systems using paralleled input transistors

The need for a very low input circuit impedance to minimize thermal noise effects has been met in a number of commercial designs by simply connecting a number of small signal transistors in parallel to reduce their effective base-emitter circuit resistance. Designs of this type came from Ortofon, Linn/Naim, and Braithwaite, and are shown in Figs 5-7.

If such small signal transistors are used without selection and matching -- a time-consuming and expensive process for any commercial manufacturer - some means must be adopted to minimize the effects of the variation in base-emitter turn-on voltage which will exist between nominally identical devices, due to variations in doping level in the silicon crystal slice, or to other differences in manufacture.

In the Ortofon circuit this is achieved by individual collector-base bias current networks , for which the penalty is the loss of some usable signal in the collector circuit. In the Linn/Naim and Braithwaite designs, this evening out of transistor characteristics in circuits having common base connections is achieved by the use of individual emitter resistors to swamp such differences in device characteristics. In this case, the penalty is that such resistors add to the base-emitter circuit impedance, when the task of the design is to reduce this.

Monolithic super-matched input devices

An alternative method of reducing the input circuit impedance, without the need for separate bias systems or emitter circuit swamping resistors, is to employ a monolithic (integrated circuit type) device in which a multiplicity of transistors have been simultaneously formed on the same silicon chip. Since these can be assumed to have virtually identical characteristics they can be paralleled, at the time of manufacture, to give a very low impedance, low noise, matched pair.

An example of this approach is the National Semiconductors LM194/394 super-match pair , for which a suitable circuit is shown in FIG. This input device probably offers the best input noise performance currently available, but is relatively expensive.

Small power transistors as input devices The base-emitter impedance of a transistor depends largely on the size of the junction area on the silicon chip. This will be larger in power transistors than in small signal transistors, which mainly employ relatively small chip sizes. Unfortunately, the current gain of power transistors tends to decrease at low collector current levels, and this would make them unsuitable for this application.

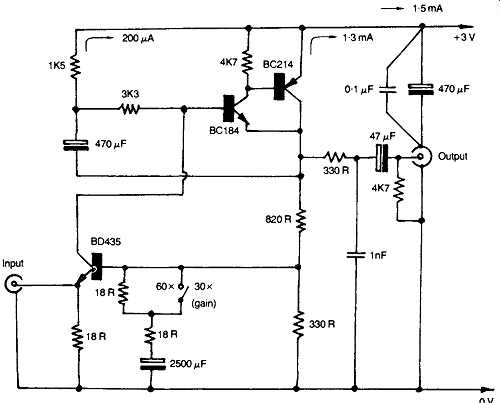

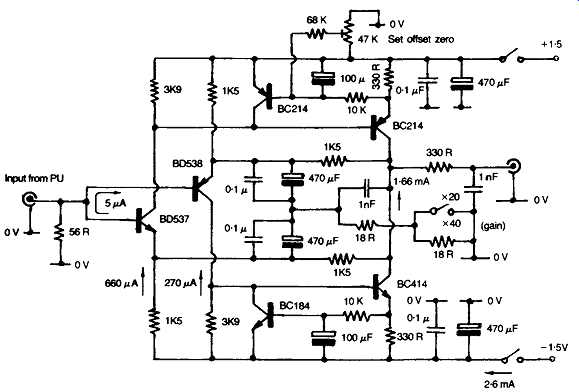

FIG. 9 Cascode input moving coil head amplifier.


FIG. 10 Very low-noise, low-distortion, symmetrical MC head amplifier.

However, the use of the plastic encapsulated medium power (3-4A Ic max.) styles, in T0126, T0127 and T0220 packages, at collector currents in the range 1-3 mA, achieves a satisfactory compromise between input circuit impedance and transistor performance, and allows the design of very linear low-noise circuitry. Two examples of MC head amplifier designs of this type, by the author, are shown in Figs 9 and 10.

The penalty in this case is that, because such transistor types are not specified for low noise operation, some preliminary selection of the devices is desirable, although, in the writer's experience, the bulk of the devices of the types shown will be found to be satisfactory in this respect.

In the circuit shown in FIG. 9, the input device is used in the common base (cascode) configuration, so that the input current generated by the pick-up cartridge is transferred directly to the higher impedance point at the collector of this transistor, so that the stage gain, prior to the application of negative feedback to the input transistor base, is simply the impedance transformation due to the input device.

In the circuit of FIG. 10, the input transistors are used in a more conventional common-emitter mode, but the two input devices, though in a push-pull configuration, are effectively connected in parallel so far as the input impedance and noise figure are concerned. The very high degree of symmetry of this circuit assists in minimizing both harmonic and transient distortions.

Both of these circuits are designed to operate from 3 V DC 'pen cell' battery supplies to avoid the introduction of mains hum due to the power supply circuitry or to earth loop effects. In mains-powered head amps, great care is always necessary to avoid supply line signal or noise intrusions, in view of the very low signal levels at both the inputs and the outputs of the amplifier stage.

It’s also particularly advisable to design such amplifiers with single point ? V line and supply line connections, and these should be coupled by a suitable combination of good quality decoupling capacitors.

Very low noise IC opamps

The development, some years ago, of very low noise IC operational amplifiers, such as the Precision Monolithics OP-27 and OP-37 devices, has led to the proliferation of very high quality, low-noise, low-distortion ICs aimed specifically at the audio market, such as the Signetics NE-5532/ 5534, the NS LM833, the PMI SSM2134/2139, and the TI TL051/052 devices.

With ICs of this type, it’s a simple matter to design a conventional RIAA input stage in which the provision of a high sensitivity, low noise, moving coil PU input is accomplished by simply reducing the value of the input load resistor and increasing the gain of the RIAA stage in comparison with that needed for higher output PU types. An example of a typical Japanese design of this type is shown in FIG. 11.

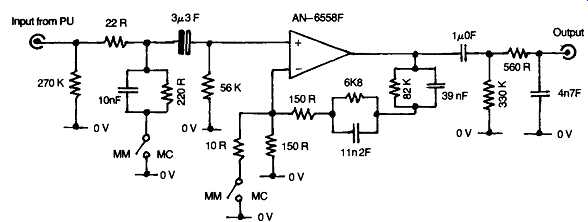

FIG. 11 Moving coil/moving magnet RIAA input stage in Technics SU-V10 amplifier.

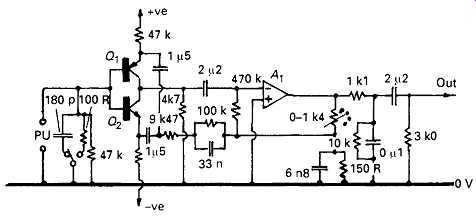

FIG. 12 The 'Quad' ultra-low noise input circuit layout.

Other approaches

A very ingenious, fully symmetrical circuit arrangement which allows the use of normal circuit layouts and components in ultra-low noise (e.g., moving coil p.u. and similar signal level) inputs, has been introduced by 'Quad' (Quad Electroacoustics Ltd) and is employed in all their current series of preamps. This exploits the fact that, at low input signal levels, bipolar junction transistors will operate quite satisfactorily with their base and collector junctions at the same DC potential, and permits the type of input circuit shown in FIG. 12.

In the particular circuit shown, that used in the 'Quad 44' disc input, a two-stage equalization layout is employed, using the type of structure illustrated in FIG. 4(g), with the gain of the second stage amplifier (a TL071 IC op. amp.) switchable to suit the type of input signal level available.

INPUT CONNECTIONS

For all low-level input signals care must be taken to ensure that the connections are of low contact resistance. This is obviously an important matter in the case of low-impedance circuits such as those associated with MC pick-up inputs, but is also important in higher impedance circuitry since the resistance characteristics of poor contacts are likely to be nonlinear, and to introduce both noise and distortion.

In the better class modern units the input connectors will invariably be of the 'phono' type, and both the plugs and the connecting sockets will be gold plated to reduce the problem of poor connections due to contamination or tarnishing of the metallic contacts.

The use of separate connectors for L and R channels also lessens the problem of inter-channel breakthrough, due to capacitative coupling or leakage across the socket surface, a problem which can arise in the five and seven-pin DIN connectors if they are carelessly fitted, and particularly when both inputs and outputs are taken to that same DIN connector.

INPUT SWITCHING

The comments made about input connections are equally true for the necessary switching of the input signal sources. Separate, but mechanically interlinked, switches of the push-on, push-off, type are to be preferred to the ubiquitous rotary wafer switch, in that it’s much easier, with separate switching elements, to obtain the required degree of isolation between inputs and channels than would be the case when the wiring is crowded around the switch wafer.

However, even with separate push switches, the problem remains that the input connections will invariably be made to the rear of the amplifier/ preamplifier unit, whereas the switching function will be operated from the front panel, so that the internal connecting leads must traverse the whole width of the unit.

Other switching systems, based on relays, or bipolar or field effect transistors, have been introduced to lessen the unwanted signal intrusions which may arise on a lengthy connecting lead. The operation of a relay, which will behave simply as a remote switch when its coil is energized by a suitable DC supply, is straightforward, though for optimum performance it should either be hermetically sealed or have noble metal contacts to resist corrosion.

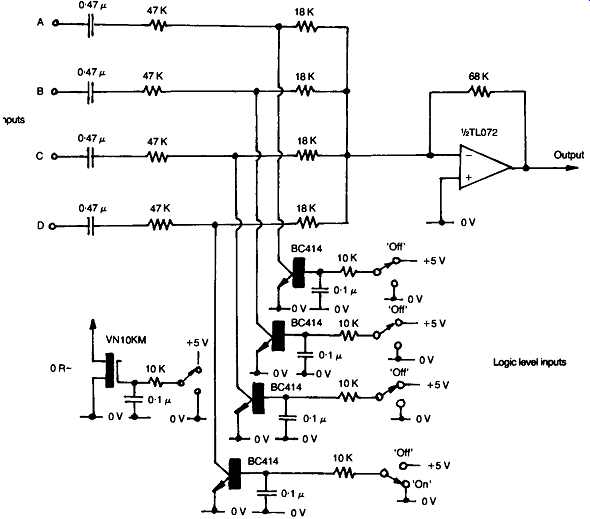

FIG. 13 Bipolar transistor operated shunt switching. (Also suitable for small-power M OS FET devices.)

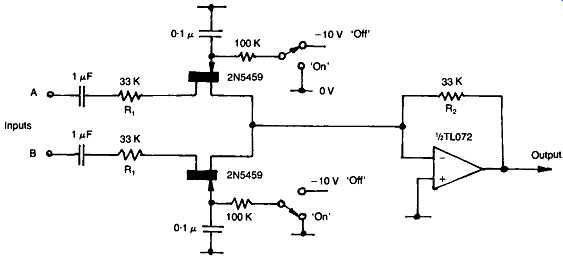

FIG. 14 Junction FET input switching circuit.

Transistor switching

Typical bipolar and FET input switching arrangements are shown in Figs 13 and 14. In the case of the bipolar transistor switch circuit of Fig. 13, the non-linearity of the junction device when conducting precludes its use in the signal line, the circuit is therefore arranged so that the transistor is non-conducting when the signal is passing through the controlled signal channel, but acts as a short-circuit to shunt the signal path to the 0V line when it’s caused to conduct.

In the case of the FET switch, if R1 and R2 are high enough, the non-linearity of the conducting resistance of the FET channel will be swamped, and the harmonic and other distortions introduced by this device will be negligible. (Typically less than 0.02% at 1 V RMS and 1 kHz.) The CMOS bilateral switches of the CD4066 type are somewhat nonlinear, and have a relatively high level of breakthrough. For these reasons they are generally thought to be unsuitable for high quality audio equipment, where such remote switching is employed to minimize cross-talk and hum pick-up.

However, such switching devices could well offer advantages in lower quality equipment where the cost savings is being able to locate the switching element on the printed circuit board, at the point where it was required, might offset the device cost.

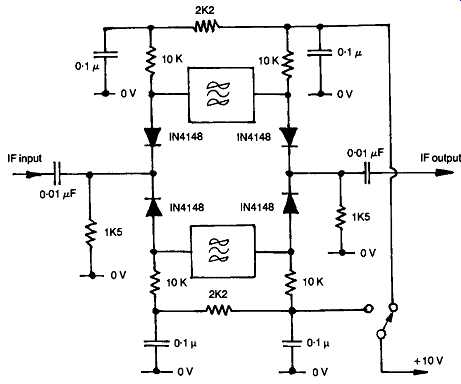

Fig. 15 Typical diode switching circuit, as used in RF applications.

Diode switching

Diode switching of the form shown in FIG. 15, while very commonly employed in RF circuitry, is unsuitable for audio use because of the large shifts in DC level between the 'on' and 'off conditions, and this would produce intolerable 'bangs' on operation.

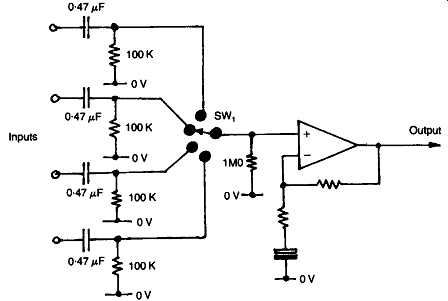

FIG. 16 Use of DC blocking capacitors to minimize input switching noises.

For all switching, quietness of operation is an essential requirement, and this demands that care shall be taken to ensure that all of the switched inputs are at the same DC potential, preferably that of the 0V line. For this reason, it’s customary to introduce DC blocking capacitors on all input lines, as shown in FIG. 16, and the time constants of the input RC networks should be chosen so that there is no unwanted loss of low frequency signals due to this cause.
