Tests
- Analyze/measure crystal oscillator harmonics
- E- and H-field probing
- PCBs (printed circuit boards) E- and H-field probes
- Cables (current probes)
- Shields (surface current and 4-point probes)
- Measure bare PCB (printed circuit board) emissions
- Measure induced or conducted emissions in cables
- Shielding (and shield-effectiveness) tests (see below)
AMAZON multi-meters discounts AMAZON oscilloscope discounts
Compact Harmonic Comb Generator Used for Shielding-Effectiveness Test
- May be put inside a product. Useful for shielding-effectiveness measurements.
- Step-recovery diode circuit produces 5 MHz harmonics from 30 to 1500 MHz.
- Powered by 9 Volt battery
Search for high-quality new and used EMC accessories at www.ebay.com...put "EMI EMC" into the search box below...

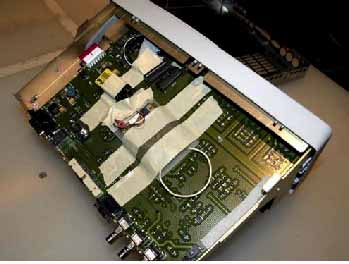

First ... Comb Generator Taped to Prototype Product

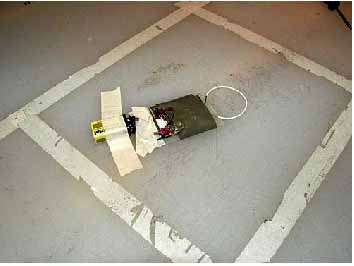

Next … Comb Generator is Measured by Itself

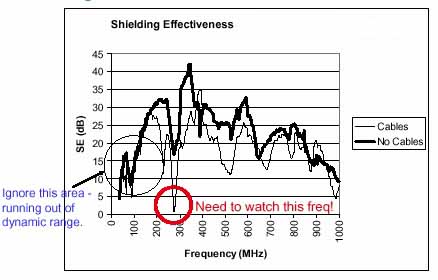

Finally...Shielding Effectiveness Plot is the Difference (between the above two tests)
