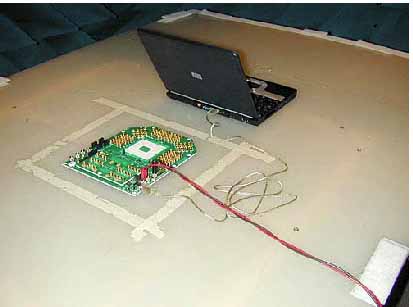

Testing a Bare PCB (printed circuit board) for Radiated Emissions
AMAZON multi-meters discounts AMAZON oscilloscope discounts

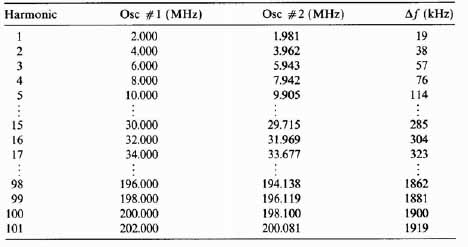

Analyzing Crystal Oscillators
Do not use fundamental oscillator frequencies whose harmonics end up closer to each other than 120 kHz (CISPR 16 quasi-peak measurement bandwidth).
Search for high-quality new and used EMC accessories at www.ebay.com...put "EMI EMC" into the search box below...

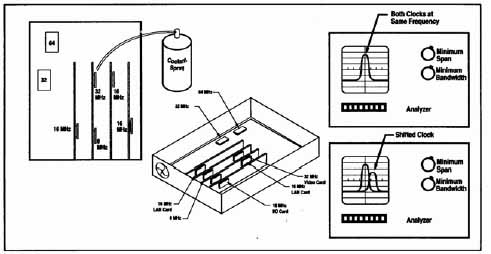

Using coolant spray to troubleshoot which oscillator is contributing most to the harmonic(s) being affected
