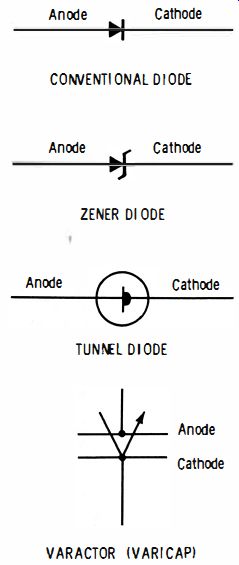

DIODE SYMBOLS USED IN THIS GUIDE
Anode --->|--- Cathode
The anode is that electrode which is connected to the positive (+ ) terminal of the DC supply for forward current flow.
ALWAYS CONNECT THE DIODE EXACTLY AS SHOWN IN CIRCUIT DIAGRAM.
