Two New Portable Instruments From Simpson Compare the Specs! Compare the Price!

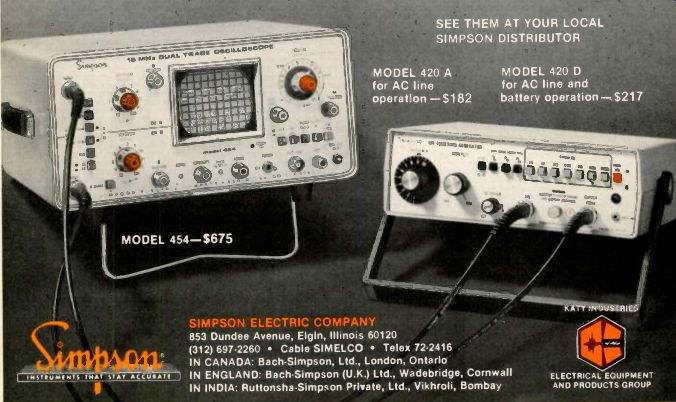

MODEL 454 3" DUAL TRACE TRIGGERED SWEEP SCOPE
• DC to 15 MHz bandwidth, 5 mV/div. sensitivity, 100 nsec/div. (X5) to .5 sec/div. sweep range
• Differential amplifiers provide stable, clean waveforms
• Voltage calibrated vertical and horizontal input attenuators
• 100 KHz chopping rate for low-speed waveforms
• Alternate mode automatically selected on high sweeps
• 24 nsec rise time, 0.5 V P-P calibrator
• Displays CH A, B, A and B, A + B, A - B, X and Y External, CH A or CH B triggering, TV sync Compact 4-5/8 x 9-7/8 x 13-1/4", weighs 13 lbs.
Two low-cap. X1/X10 probes included
MODEL 420 FUNCTION GENERATOR
• Provides sine wave, triangle wave, square wave and DC voltage output
• Fixed TTL output drives up to 10 TTL loads
• Wide frequency coverage of 0.1 Hz to 1 MHz in 7 ranges
• Voltage-controlled generator input for sweep signals
• Continuously variable DC offset control with convenient Off position
• Model 420D provides full day's operation on batteries*, and it can also be recharged overnight. The instrument can be operated from AC line voltage without the batteries installed. *Batteries not supplied.
Compact 2.7 x 8.4 x 9" unit matches our DMM styling
Adjustable tilt-view handle
SEE THEM AT YOUR LOCAL SIMPSON DISTRIBUTOR
MODEL 420 A for AC line operation - $182
MODEL 420 D for AC line and battery operation - $217
MODEL 454 -$675
ELECTRICAL EQUIPMENT AND PRODUCTS GROUP
853 Dundee Avenue, Elgin, Illinois 60120 (312) 697-2260 • Cable SIMELCO • Telex 72-2416
