A re-examination of the general principle and a suggested new method of construction

Since the wool-filled transmission-line loudspeaker enclosure was first describedt there has been a steadily increasing interest in its use.

The basic transmission-line enclosure is shown in Fig. 1. Radiation from the hack of the driver cone flows down a pipe filled with a low-density sound-absorbing material. Fibrous absorbents such as loose wool, cotton wool and kapok can be used; sound absorption decreasing as the frequency goes down. In general it is very difficult to obtain good absorption if the path length is less than one-quarter wavelength of the sound in free-space; at 30Hz this corresponds to a path length of about 9ft.

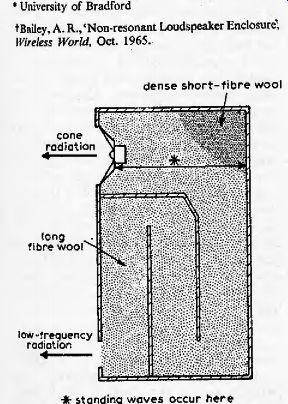

Fig. 1. Original transmission-line cabinet design

If the pipe length is less than 9ft, sound at and below 30Hz will emerge from the open end of the pipe. Due to time delay in the pipe, the sound will not start to cancel the radiation from the front of the cone until the effective pipe-length is less than one-sixth of a wavelength. It is therefore possible to use the radiation from the open end of the pipe to reinforce that from the front of the loudspeaker cone at low frequencies.

The effect of the woo) filling in the pipe is to slow down the wave relative to its velocity in free air. This reduction factor is between 0,7 and 0.8 for the recommended packing density, so the system will operate down to a somewhat lower frequency than would otherwise be expected.

The folding in the original cabinet design caused sound coloration due to reflections at the bends --particularly the first one at the back of the cabinet. The degree of coloration introduced by this first reflection (which, incidenlalfy, is present in all plain box-shaped cabinets)

was quite serious with the high crossover frequency of 1500Hz. Certainly the reproduction without it sounded as if an echo had been removed. The reasons for this were investigated.

In a simple closed box, as shown in Fig. 2, a sound impulse generated by the cone will have two components --the direct radiated pulse from the front of the cone and that propagated back into the cabinet.

If this latter is assumed to be a plane wave, i.e. sound travelling parallel to the cabinet sides, it will strike the back wall and bounce back to the cone still as an impulse. Some of this energy will radiate through the cone to the outside and the remainder will be reflected back into the cabinet for re-reflection. The net result is a succession of steadily weakening pulses being radiated from the cabinet. The acoustic ouput will therefore be as shown in Fig. 3.

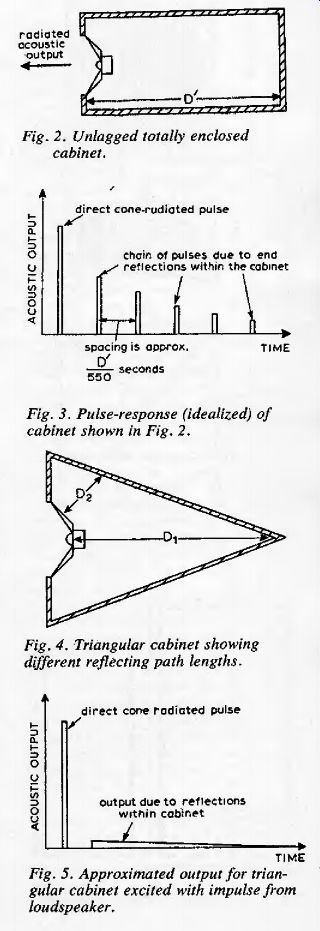

Fig. 2. Unlagged totally enclosed cabinet.

Fig. 3. Pulse-response (idealized) of cabinet shown in Fig. 2.

Fig. 4. Triangular cabinet showing different reflecting path lengths.

Fig. 5. Approximated output for triangular cabinet excited with impulse from loudspeaker.

If the reflection from the back wall of the cabinet is changed so that it is gradual rather than abrupt, then the reflected wave will not be a unit impulse from an initiating unit impulse, but a pulse whose length and shape will depend on the nature of the reflection. This may be more readily appreciated by referring to Fig. 4.

Here, the back wall of the cabinet is triangular. Sound radiated from the back of (he cone is successively subjected to reflection, the first reflection occurring due to sound from the edge of the cone, and the last being due to that from the centre. As the path lengths for these reflections are very different, the sound in the cabinet will not emerge as a unit impulse but as a much lower amplitude long pulsemore like a continuous low level sound. This is subjectively far less noticeable to the ear than a series of decaying impulses. The two effects are compared in Fig. 5.

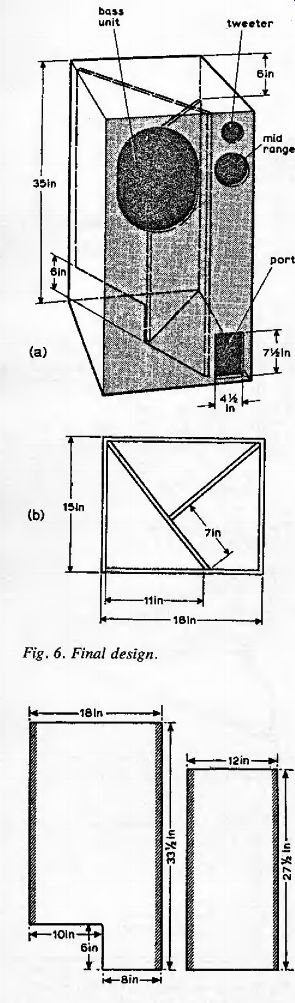

Fig. 6. Final design.


Fig. 7. Dimensions f internal partitions.

Obviously, it would be far better to absorb the sound completely on the back wall of the cabinet. Here we face the impossible, but it is imperative to make the best use of absorbent within the cabinet.

Towards a solution The basic requirement in using a forward facing loudspeaker unit is to guide the sound into the vertical direction, without producing bad reflections. In addition the system must be fairly simple, to keep woodworking costs low, and also mechanically strong, to avoid significant panel resonances.

After experimenting with different cabinet shapes, the arrangement shown in Fig, 6 was arrived at. This has several advantages over the original design.

First, the pipe is triangular in crosssection, thus giving less audible coloration due to reflections. Secondly, the woodwork is very simple; only two internal partitions are necessary. Thirdly, the front of the cabinet and the large partition are automatically braced so reducing panel resonance. Finally, sufficient area is available on the front of the cabinet to mount a mid-range unit in part of the line remote from the back of the bass driver when internal pressures are not too high.

In practice, it has not been found necessary to use a separate enclosure for the mid-range unit. Details of the partition sizes are shown in Fig. 7. A three-speaker system is recommended, as there is at present a difficult 'gap' between known lowcoloration bass units and tweeters.

Incidentally, it should be noted that many 'high-fidelity' drive units are that in name only. Frequency-response is only one aspect of performance, and the transient response is far more important overall. Pulse or step testing loudspeakers in a long matched acoustic transmission line is most illuminating. Some units will still be radiating appreciable acoustic power 50ms after the exciting pulse has disappeared !

--------------------

Recommended drive units and crossover networks

Bass driver BD 25/8 (mult. by 1.25 for USD ) £24.50 + VAT

Mid-range unit MD 6 f 16.50-HVAT

Tweeter TD 3 (mult. by 1.25 for USD ) £ 7.50 + VAT

Crossover network FN 10 (mult. by 1.25 for USD ) £11.00 + VAT

Radford Audio Ltd., Bristol BSA3 2HZ.

(mult. by 1.25 for USD ) £19.50 + VAT

(mult. by 1.25 for USD ) £ 8.25 + VAT

(mult. by 1.25 for USD ) £ 6.00 + VAT

(mult. by 1.25 for USD ) £ 7.00 + VAT

Alternative units

Bass driver B 139

Mid-range B 110

Tweeter T 27

Crossover unit DN 12

K.E.F. Electronics Ltd., ToviL Maidstone, Kent. (The performance with the K.E.F. units is improved if the Radford crossover is used in place of the K.E.F. crossover.)

Long-fibre wool may be obtained from John W. Pennington (Dowley Gap) Ltd., Midland Wool Warehouses, Briggate, Windhiil, Shipley, Yorks.

The cost is (mult. by 1.25 for USD ) £1.35/lb including VAT and postage.

----------------------

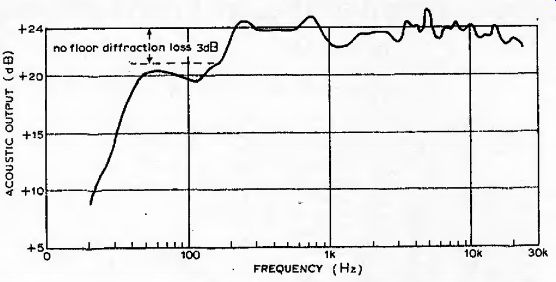

Fig . 8. Anechoic response curve of complete loudspeaker system.

The units specified are known to have good transient response and are available with a suitable crossover network. Such networks are very difficult to design and it is not sufficient to use a general-purpose crossover unit. Unfortunately, loudspeakers do not behave as pure resistance at all frequencies -- often quite the contrary. Design of crossovers from this assumption is completely incorrect and it is not uncommon for correct inductor sizes in a network to be double that expected from simple theory. In addition the different phase-angles of speakers at the crossover frequency complicates matters even more, and bad design can lead to abnormally low impedance levels over some parts of the frequency range. In short, crossover networks must be designed to operate with the speaker units that they are to be used with or very peculiar results can be obtained.

As previously, long-fibre wool is recommended as the continuous acoustic absorbent that fills the whole of the transmission line pipe. The wood must be well teased out or it loses its effectivencss. Anchoring the wool is something of a problem as it can compact with transportoruseoveraperiod. Nails ordowels projecting from the partitions will serve, but make stuffing difficult. The best suggestion yet made is to use a 'Netlon' core for the wool, fibres being teased through it and left sticking out ail round.

Using front-mounting loudspeakers as specified, the two front pipes can be loaded through the speaker and port apertures, and the rear pipe is easily filled by removing the back of the cabinet. Alternatively, if the cabinet top is made removable all three pipes can be loaded from the top. A packing density of about Vblb per cubic foot is about right. Excess wool will cause back-pressures on the cone, and too little will cause pipe resonances in the low bass region.

What column resonance remains in the system can be reduced by putting 45degree corner reflectors at the back of the speaker and also at each side of the first bend. These are not critical but should be so arranged that sound from the back of the cone will 'bounce' down the first pipe and then up the second, i.e. consider the sound to be light and the reflectors to be mirrors. The improvement is only about 1dB in frequency response when using reflectors, and as this improvement is only just detectable it may well be decided to omit them. If included, they should be made from 3 /4in chipboard or some similar material, and firmly fixed to the cabinet.

The port area is not critical as there is none of the tuning effect that occurs in the base reflex enclosure. Changes in port area of two-to-one ratio produce no noticeable effect, but nevertheless it would be unwise to make the port much smaller than that given in the drawings as this is already considerably smaller in area than the pipe feeding it.

As mentioned previously, response curves should be treated with extreme caution as they represent only part of the performance of the speaker. Nevertheless the overall response curve should be as flat as is reasonably possible. The curve for the complete system when measured in an anechoic chamber is shown in Fig 8.

In looking at this curve several points must be noted. First, the falling bass response shown will not occur in the same manner in a room. The presence of a floor will give a 3dB lift due to the absence of diffraction in the downward direction.

Similarly, walls and ceilings add to the on-axis bass output. In fact a 'flat' response in an anechoic chamber will sound very bass heavy when the system is used in a normal room. Under normal room conditions the bass output of the system described is quite adequate, windows being easily rattled at 30Hz.

The smoothness of the overall curve is the most critical point, the odd decibel of gain or loss in overall response being far less important than a response with a smooth envelope. A jagged response curve means high Q components in the output and these are very noticeable on test. In fact a high Q resonance that lifts the overall response by only 0.2dB may ruin the reproduction of an otherwise excellent speaker. Transient response testing is the ideal answer, but interpretation of the results is very difficult at present except on a rather empirical basis.

The ultimate test is the ear, but one must always remember that personal prejudice can enter into things to a very large extent. For this reason the best test material is not music but such things as pure sine waves (for distortion) and applause, or better still white and pink noise (for transient response). Regarding the use of pink noise, which incidentally is only white noise attenuated by 3dB per octave with increasing frequency, the following incident happened to the author. A pink noise generator had been built and and was being tested with a speaker system. A most noticeable hum was produced and all attempts to find the source in the generator failed. It was finally discovered that the hum was not present in the noise, but was the fundamental resonance present in the speaker system. This speaker (which was of the unlagged reflex type) had previously been used in music tests, and several people had commented on the good performance, particularly in the bass region.

If the cabinet size is felt to be rather too large, then it is possible to scale all the dimensions given according to the diameter of the bass driver being used. This will result in a poorer bass performance and is not advised, but a very creditable performance is possible using an Sin driver unit and scaling ail the dimensions by four fifths. This factor results from the recommended bass driver having the same effective cone area as a normal lOin unit of circular construction.

In conclusion it must be emphasized that only the system as described is in any way guaranteed. Readers can experiment, of course, but must be prepared to solve their own problems.

by Arthur R. Baitey , M.Sc., Ph.D., M.bE.E.

--------------------------------


Fig . 8. Anechoic response curve of complete loudspeaker system.

Letters to the Editor

Trans mission-line speakers Dr Bailey's transmission-line speaker design in the May issue of Wireless World was very interesting. Just before reading it I had been studying his previous design in the October 1965 issue and wondering whether it would be possible to reduce the chance of standing waves inside the enclosure by using angled panels to give triangular cross sections, when, lo and behold, Dr Bailey had done it for me. I was all set to build the new enclosure when I happened to notice the comparison between the published frequency response curves for the new design, the 1965 design, and the KEF Concord totally-enclosed design. For frequencies below 1000Hz the original design response is flat within -l-0.5-2.0dB down to 25Hz (excellent), the new improved design is flat within -|-2.0-11.0dB over the same range (not so good). More interesting is the comparison between the new design and KEF's totally-enclosed cabinet as published in their enclosure design leaflet.

The two curves are virtually identical being within 2.0dB of each other over nearly all the range from 1kHz to 20 Hz.

One would expect the new transmission-line response to be similar to the original, and yet it is much more like the KEF cabinet which is one-third the volume and based on a different principle.

Sound reproduction is still more art than science, and I feel Dr Bailey's comments on this apparent, contradiction would be illuminating and also helpful to people like me, P. A. Sheppard, Chandlers Ford, Hants.

The author replies; The original transmission4ine cabinet was tested under free-field conditions but with the presence of a floor and a reflecting wall. This will give at least 6dB of boost compared with the truly anechoic response curves which were published for the second design. This boost at the low frequencies is due to the prevention of diffraction which otherwise occurs due to the absence of floor, walls or ceiling. In other words, the anechoic response is only a guide to perform ance, and a loudspeaker that gives a truly flat response under anechoic conditions will sound very bass heavy when used in a normal room.

Frequency response curves are only a guide to performance, and certainly one cannot tell from an examination of response curves alone the respected merits of different loudspeaker systems. In a system using several drive units it is possible to obtain widely differing response curves merely by changing the microphone position being used to measure the loudspeaker characteristics. It is by no means unusual to find a response curve that is sensibly flat on the axis of the tweeter turn into a curve with dips of l 0-db or more when measuring the axis of the mid-range or bass unit. In addition, no anechoic chamber is perfect and one can obtain considerable variations in response curves when using the same test object in different anechoic chambers.

There is at least one known instance of a speaker being deliberately angled to a very peculiar position in an "anechoic" chamber, because that was the position where a flat response curve was obtained.

We are still in a position of not being able to evaluate loudspeakers adequately using axial response curves, and until superior measurement techniques have been evolved, by far the best test is that of careful listening and switching between the various units being evaluated.

I have not tested the KEF Concord that Mr Sheppard mentions, but I feel that the foregoing may partly answer his queries.

In addition there are such aspects as power handling capacity and frequency doubling to be taken into account, so I would hesitate to make a definite pronouncement except that in general, large cabinets perform better than small ones.

A. R. Bailey


-----
