ENCLOSURE CONSTRUCTION DETAILS
for 8-inch speakers
FIG. A-1 BOOKSHELF BASS REFLEX
FIG. A-2 WALL TYPE HORN LOADED PORT BASS REFLEX
FIG. A-3 CORNER FOLDED HORN
for 12-inch speakers
FIG. A-4 WALL TYPE HORN LOADED PORT BASS REFLEX
FIG. A-5 CORNER FOLDED HORN FIG.
A-6 CORNER FOLDED HORN FIG.
A-7 CORNER FOLDED HORN FIG.
A-8 FOLDAFLEX BASS REFLEX OR FOLDED HORN FIG.
A-9 CORNERLESS CORNER HORN LOADED PORT BASS REFLEX
for 12-inch or 15-inch speakers
FIG. A-10 CORNER FOLDED HORN
FIG. A-11 BACK LOADED BASS REFLEX
FIG. A-12 CORNERLESS CORNER HORN LOADED PORT BASS REFLEX
FIG. A-13 CORNER HORN LOADED PORT BASS REFLEX
for 15-inch speakers
FIG. A-14 BACK LOADED FOLDED HORN
FIG. A-15 BACK LOADED FOLDED HORN
FIG. A-16 WALL TYPE BASS REFLEX
FIG. A-17 FRONT LOADED, REAR COMPRESSION LOADED, REAR VENTED DUAL 15 HORN
FIG. A-18 WALL TYPE REAR FOLDED HORN
(These illustrations are reproduced through the courtesy of the manufacturers and publications designated in the captions.)

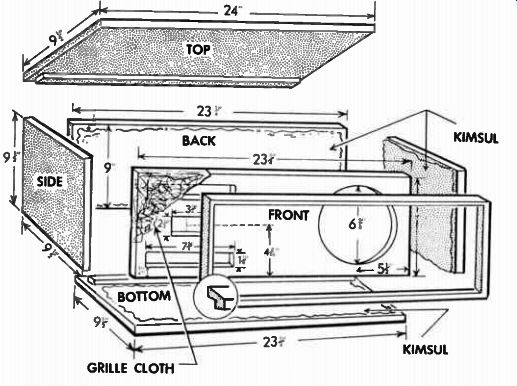

Fig. A-1. Bookshelf bass reflex (University Companionette).

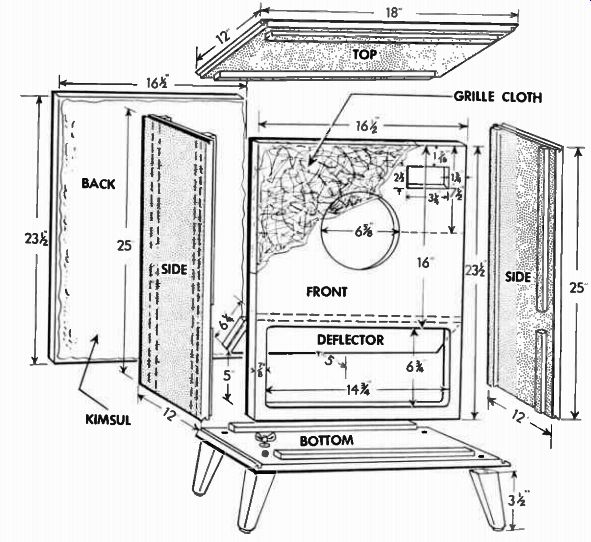

Fig. A-2. Wall type horn loaded port bass reflex (University Triumph).

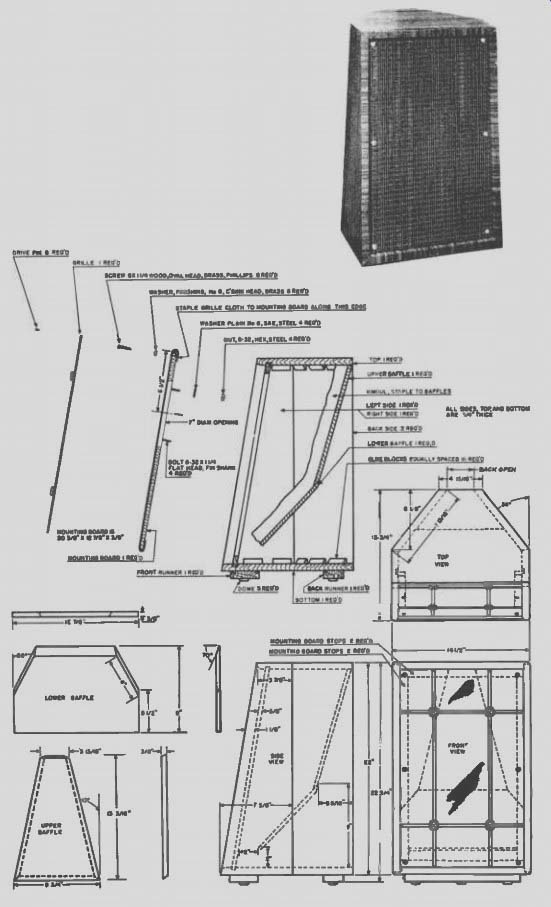

Fig. A-3. Corner folded horn (Electro-Voice Baronette - Klipsch design,
courtesy Radio &Television News).

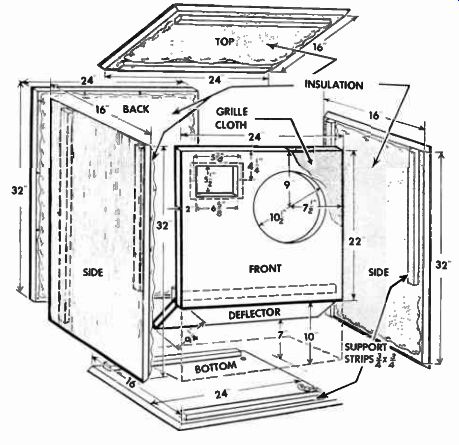

Fig. A-4. Wall type horn loaded port bass reflex (University).

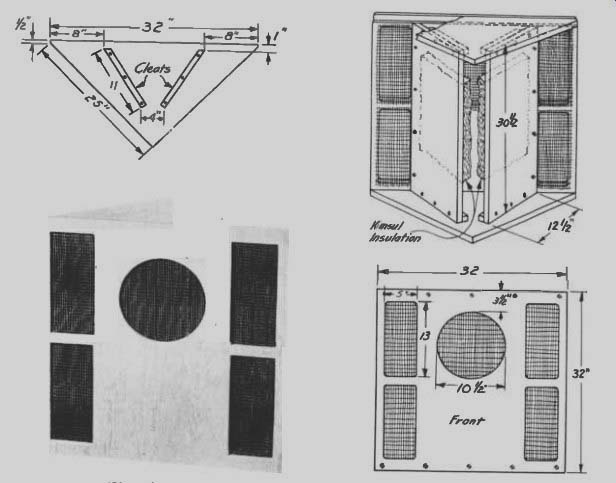

Fig. A-5. Corner folded horn (Cabinart

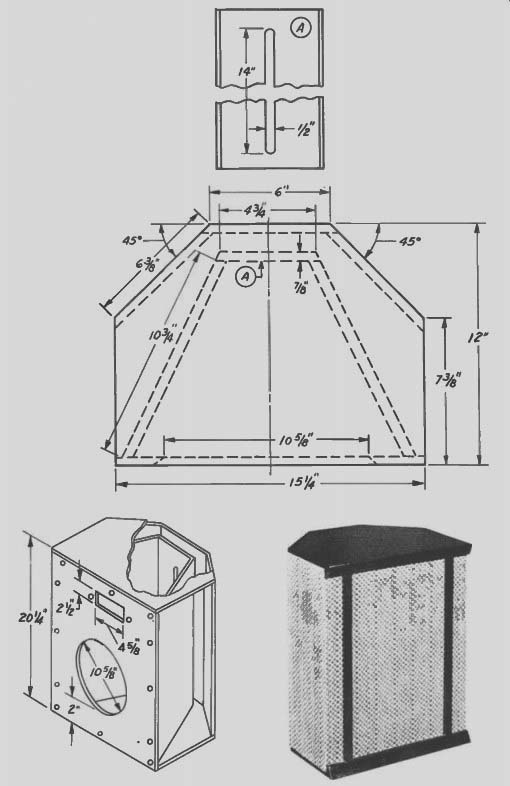

Fig. A-6. Corner folded horn (Cabinart KR-5 - Klipsch design).

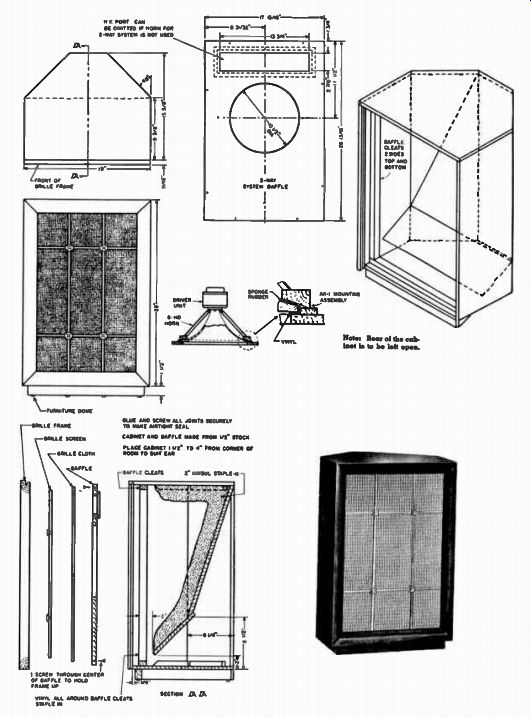

Fig. A-7. Corner folded horn (Electro-Voice Aristocrat - Klipsch design,
courtesy Radio & Television News).

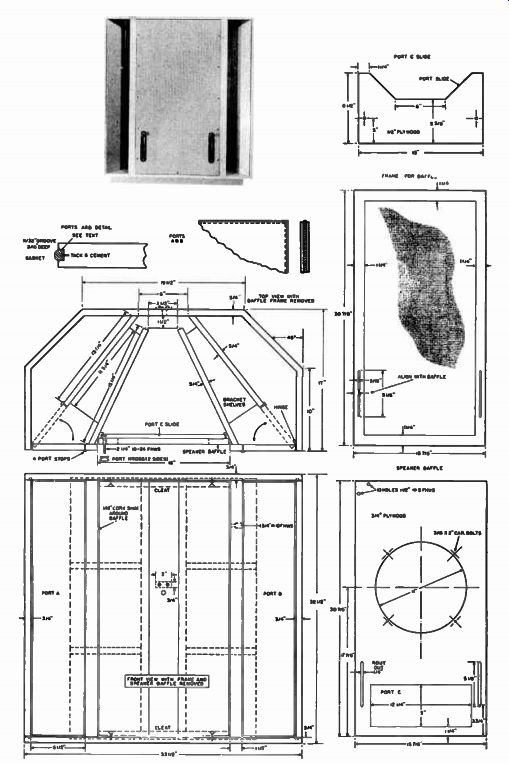

Fig. A-8. Foldaflex bass reflex or folded horn (Oliver Read design, courtesy
Radio & Television News).

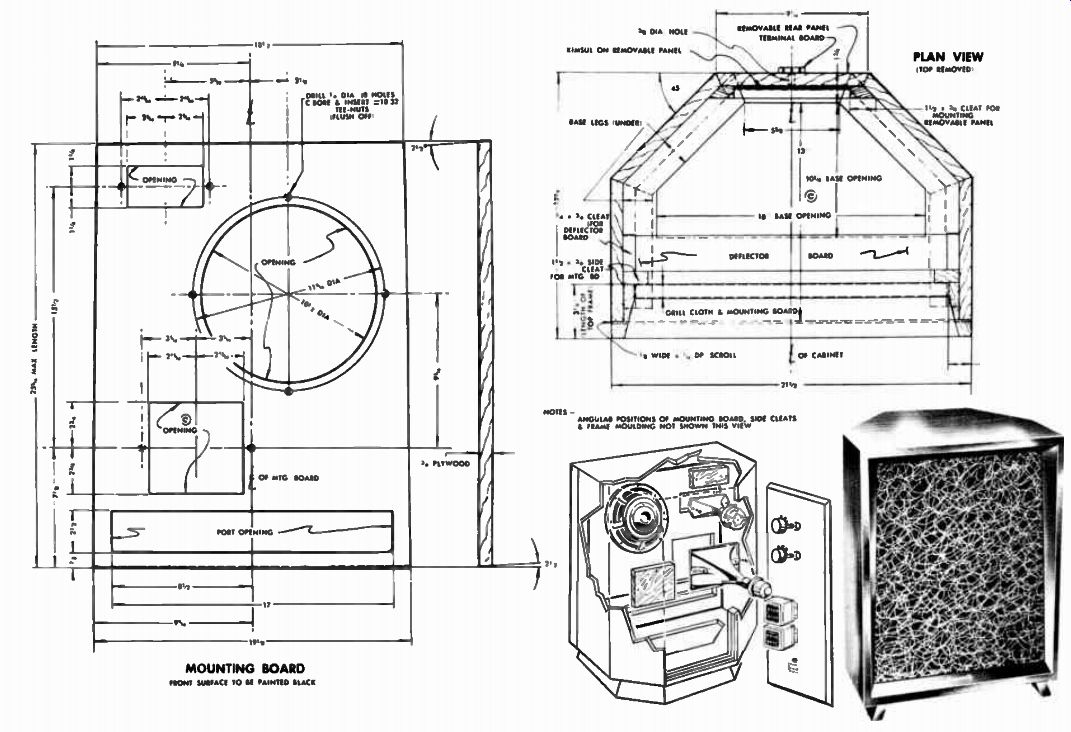

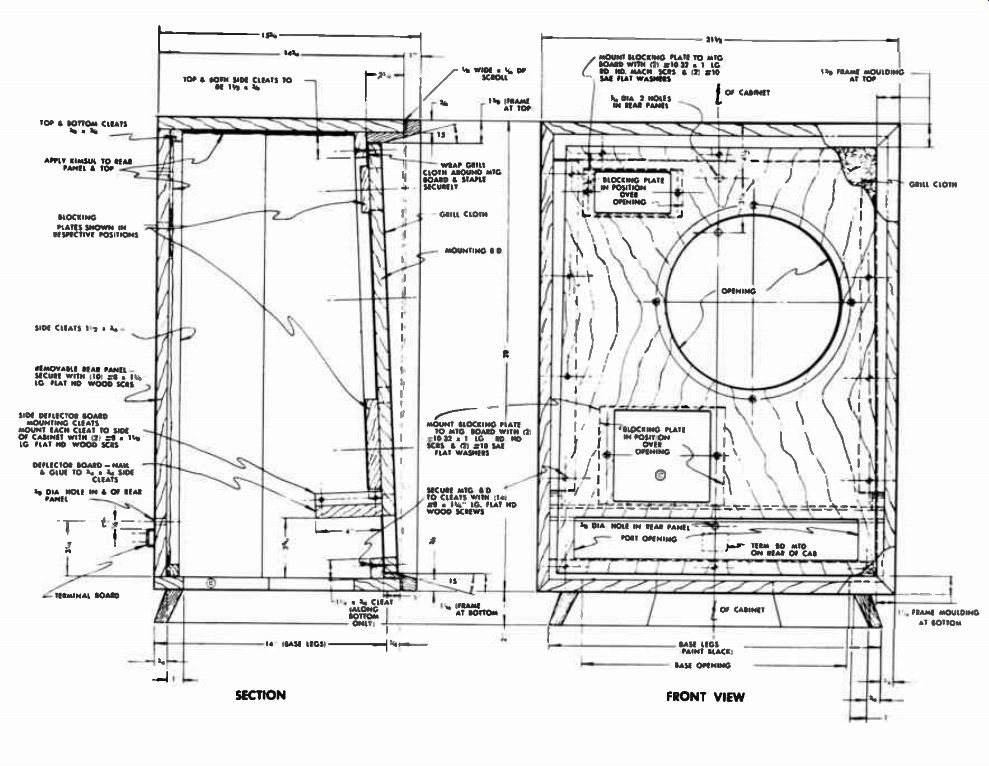

Fig. A-9. Cornerless corner horn loaded port bass reflex (University
EN-12).

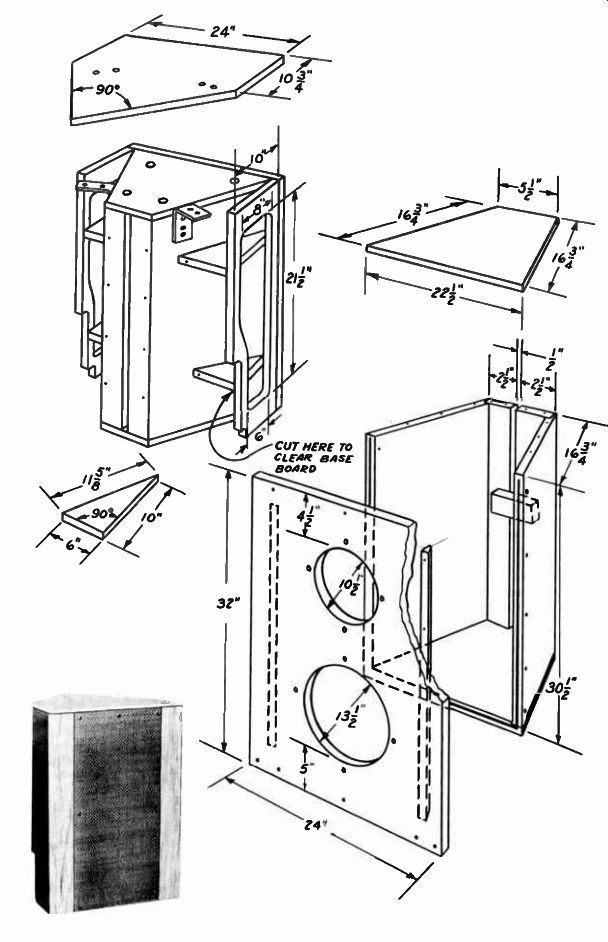

Fig. A-10. Corner folded horn (Cabinart KR-3 - Klipsch design).

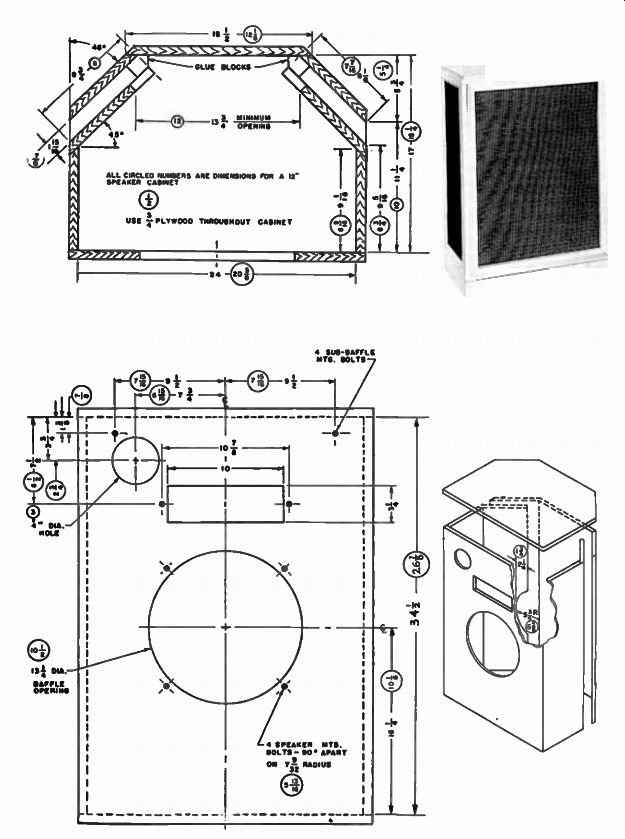

Fig. A-11. Back loaded bass reflex (Jensen 1.11traflex).

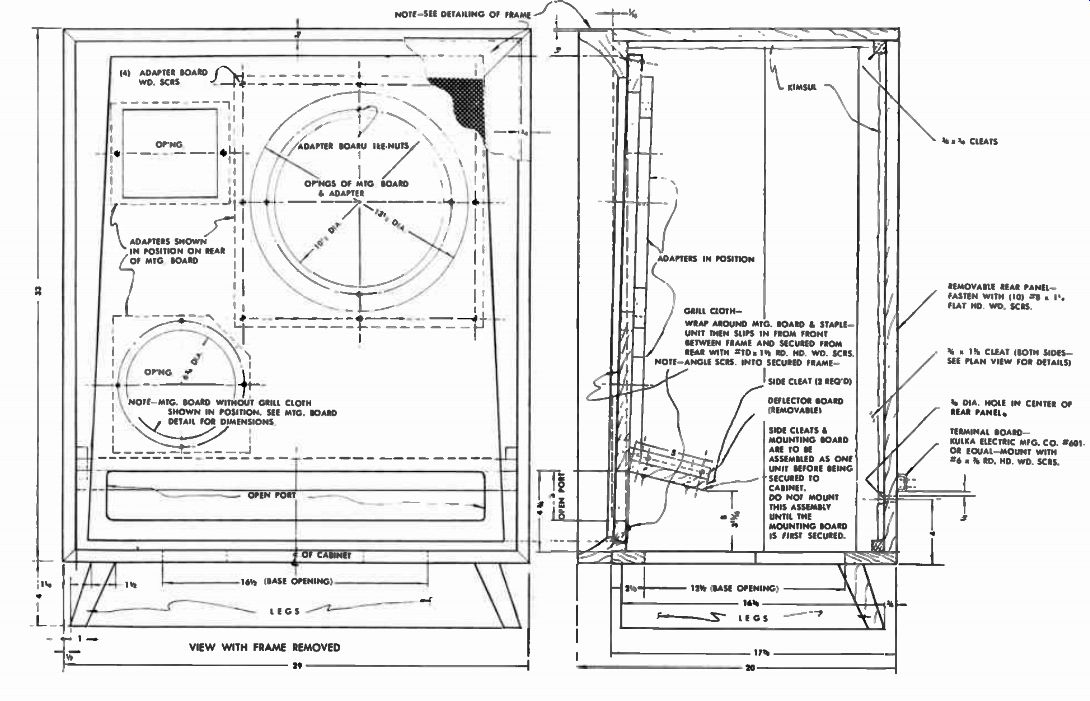

Fig. A-12. Cornerless corner horn loaded port bass reflex (University
EN-15).

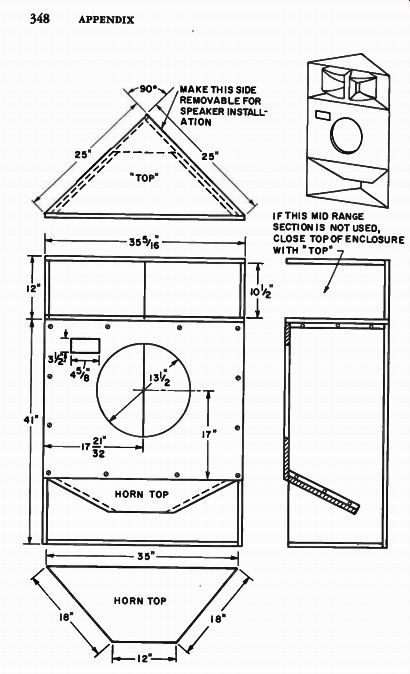

Fig. A-13. Corner horn loaded port bass reflex (University).

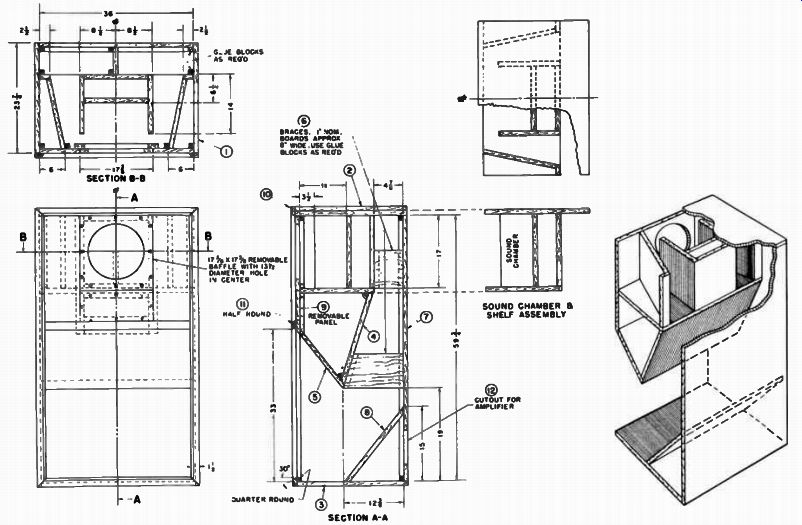

Fig. A-14. Back loaded folded horn (Jensen).

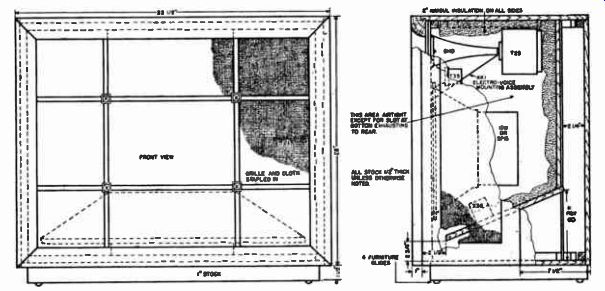

Fig. A-15. Back loaded folded horn (Electro-Voice Regency - Klipsch design,
courtesy Radio & Television News).

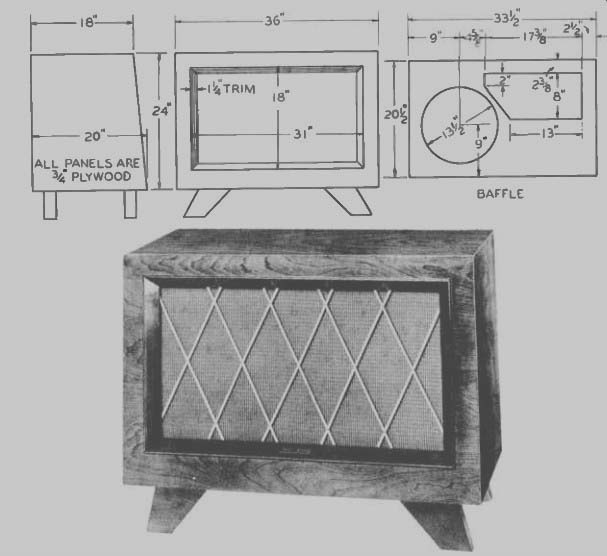

Fig. A-16. Wall type bass reflex (Stephens Low-Boy, Model 610).

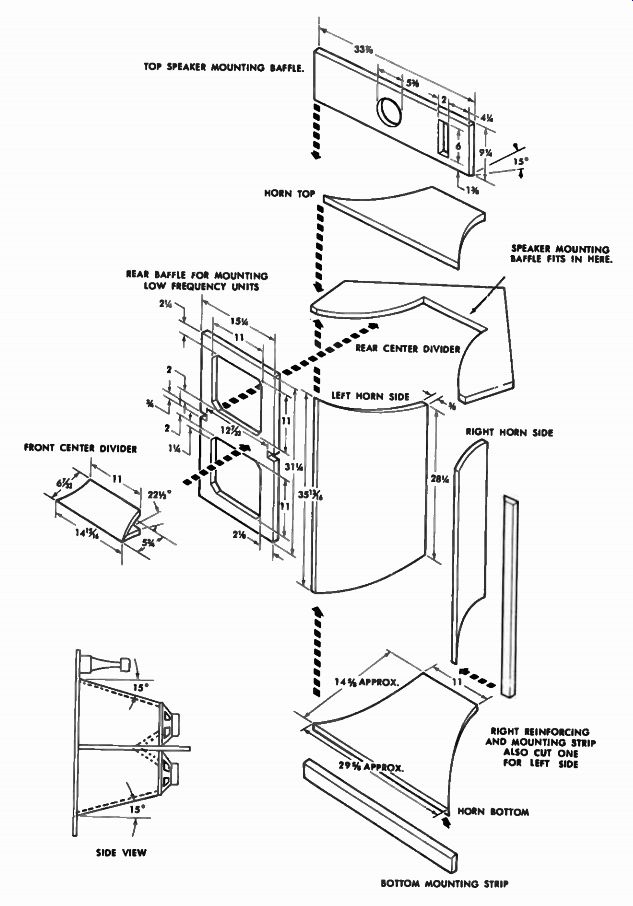

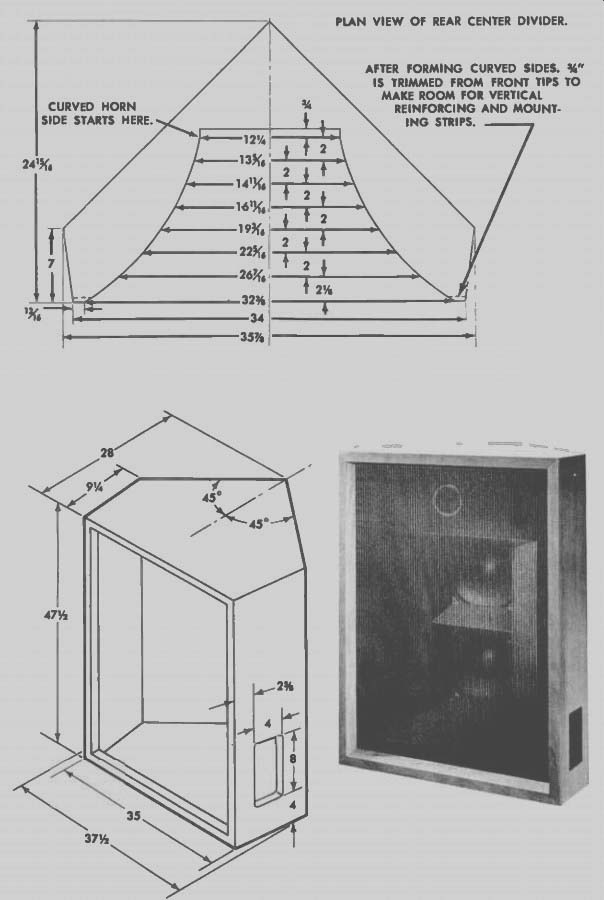

Fig. A-17. Front loaded, rear compression loaded, rear vented dual 15
horn (Jim Lansing Signature, Model D31050).

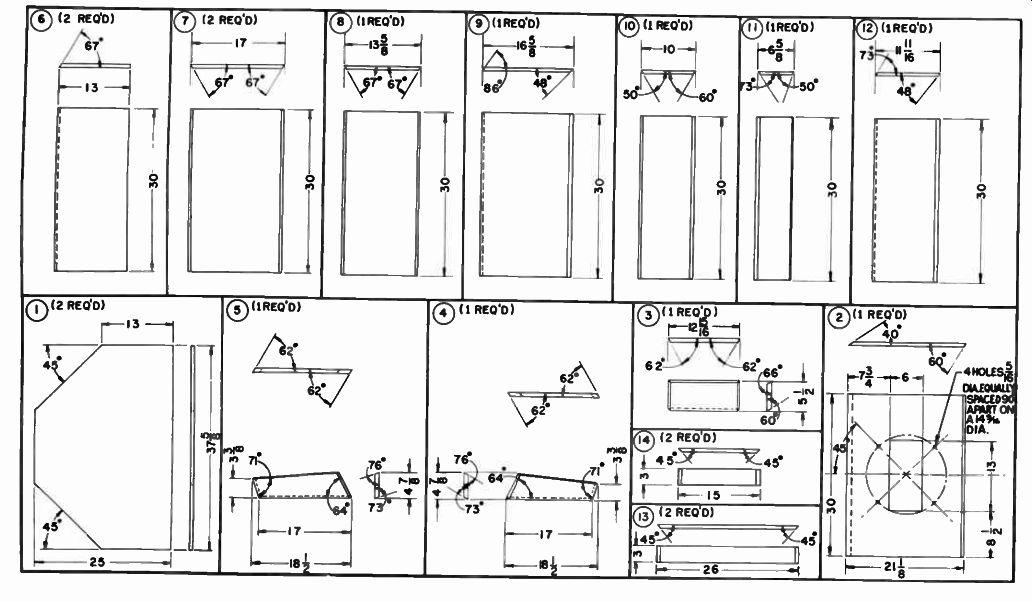

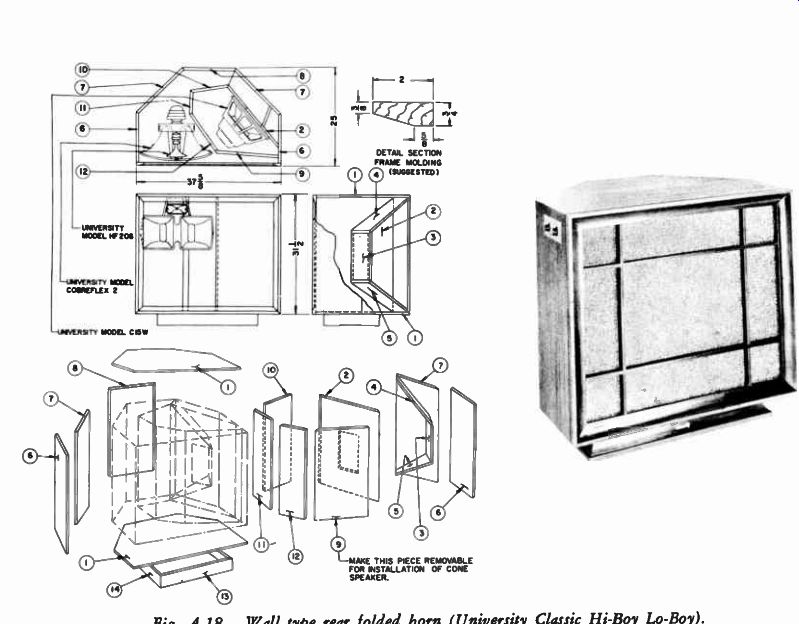

Fig. A-18. Wall type rear folded horn (University Classic Hi-Boy Lo-Boy).
