The following pages contain full size drilling templates for many of the circuits in the Manual. It is a good idea to mount each template on cardboard before it is used so that it will not tear readily and become unsatisfactory for repeated use. The template should be securely fastened to the circuit board before holes are drilled through it. A key to the symbols used on the tem plates is interspersed among the following pages. A list of templates is given below.
-------------
Template Page No.
171 Ten-Stage Shift Register
173 Simple Code-Practice Oscillator
173 Audio Oscillator
173 Automatic Keyer
175 Microphone Preamplifier
177 Audio Mixer, Compressor, and Line Amplifier
179 Universal Timer
181 Enlarger Exposure Meter
183 Temperature Alarm
185 Positive-Action Light-Operated Switch
187 Electronic Fuzz Box
187 Phonograph Preamplifier
189 Audio Power Amplifier
191 Electronic Metronome
193 Single-Voice Organ Amplifier
193 Single-Voice Organ Tremolo and Tone Oscillator
195 Single-Voice Organ Resistor Board
197 Single-Voice Organ Capacitor Board
199 Automobile Tachometer
199 Battery Charger
201 Electronic Siren
201 Electronic Slot Machine Running and Stop Oscillator
203 Electronic Slot Machine Flip-Flop
203 Electronic Slot Machine NAND Gates (gates A,B,C)
205 Electronic Slot Machine NOR Gate (2 score)
205 Electronic Slot Machine NOR Gates (scores 10 through 100)
207 Electronic Die Digital Pulser and Six-Stage Shift Register
209 Electronic Die Indicator-Lamp Gate and Driver
211 VFO Calibrator
213 Frequency-Selective AF Amplifier
--------------

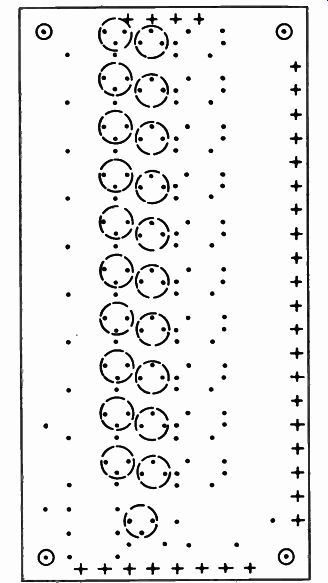

-----173 Ten-stage shift register; Circuit No. 2; 3- by 6-inch board.
-----------------

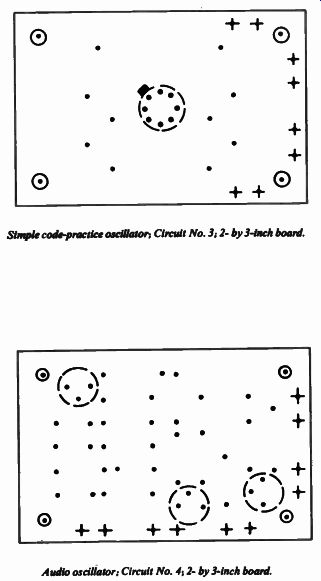

--------------175 Simple code-practice oscillator; Circuit No. 3; 2- by 3-inch board.
---------------- 175 Audio oscillator; Circuit No. 4: 1- by 3-inch board.
KEY TO DRILLING SYMBOLS
No. 60 drill (0.040 inch)
+ No. 58 drill (0.042 inch)
ON°. 32 drill (0.116 inch)

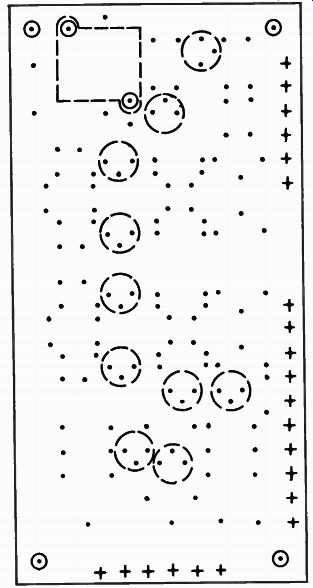

---------------177 Automatic keyer: Circuit No. 6: 3- by 6-inch board.

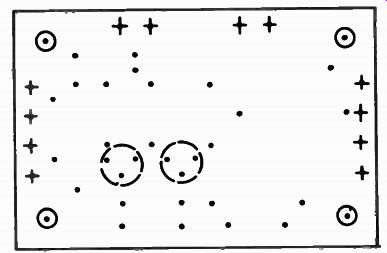

---------------179 Microphone preamplifier; Circuit No. 7; 2- by 3-inch board.
KEY TO DRILLING SYMBOLS
•No. 60 drill (0.040 inch)
+ No. 58 drill (0.042 inch)
O No. 32 drill (0.116 inch)

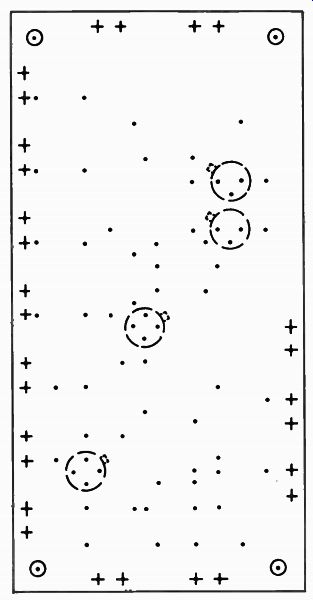

----------------------- 181 Audio mixet, compressor, and line amplifier; Circuit No. 8: 3- by 6-inch board.
-------------------183 Universal timer; Circuit No. 9; 3- by 6-inch board.
----------------185 Enlarger exposure meter; Circuit No. IO: 2- by 3-inch board.
KEY TO DRILLING SYMBOLS
•No. 60 drill (0.040 inch)
+ No. 58 drill (0.042 inch)
ØN°. 32 drill (0.116 inch)

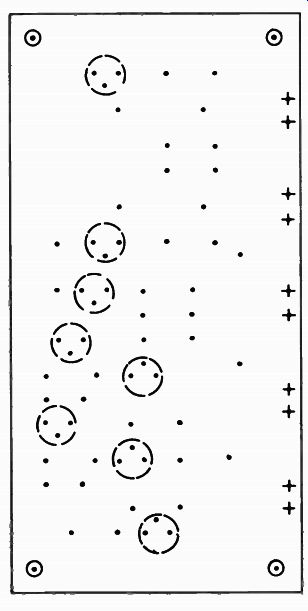

-----------------187 Temperature alarm, Circuit No. 12; 3- by 6-inch board.

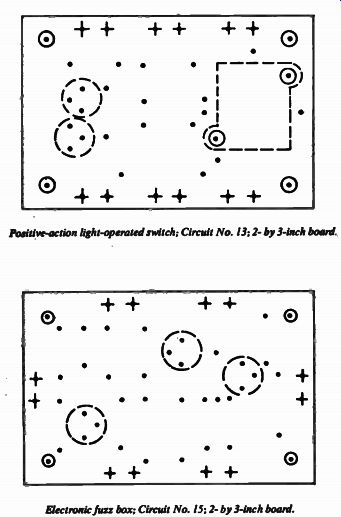

-----------------189 Positive-action light-operated switch; Circuit No. 13; 2- by 3-inch board.
Electronic fuzz box; Circuit No. 15; 2- by 3-inch board.
KEY TO DRILLING SYMBOLS
-No. 60 drill (0.040 inch)
-4- No. 58 drill (0.42 inch)
No. 32 drill (0.116 inch)

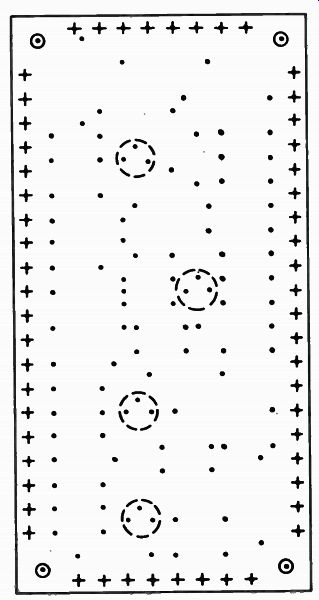

----------------191 Phonograph preamplifier; Circuit No. 16; 3- by 6-inch board.

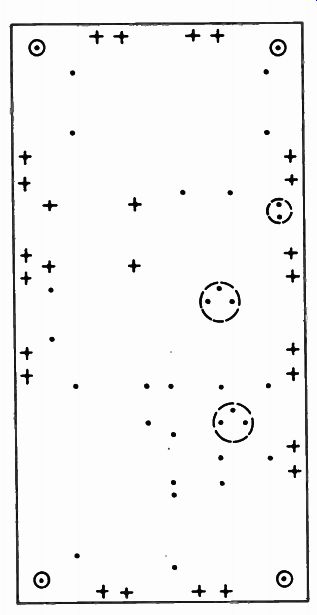

-------------------194 Audio power amplifier; Circuit No. 17; 3- by 6-inch board.

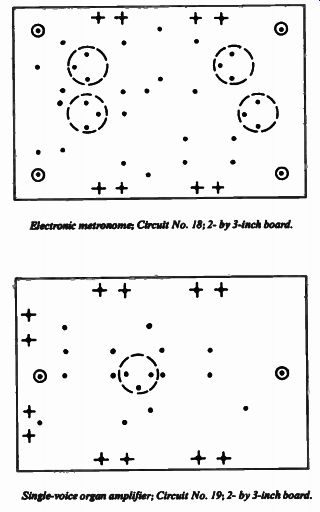

-----------------195 Electronic metronome; Circuit No. 18; 2- by 3-inch board.
---------------------195 Single-voice organ amplifier; Circuit No. 19; 2- by 3-inch board.
KEY TO DRILLING SYMBOLS
•No. 60 drill (0.040 inch)
+ No. 58 drill (0.042 inch)
No. 32 drill (0.116 inch)
----------------197

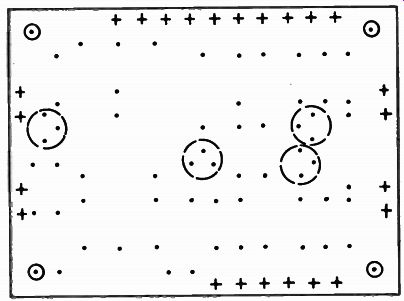

Single-voice organ tremolo and tone oscillator; Circuit No. 19; 3- by 4-inch board.
KEY TO DRILLING SYMBOLS
• No. 60 drill (0.040 inch)
4- No. 58 drill (0.042 inch)
No. 32 drill (0.116 inch)

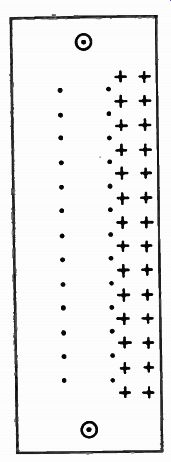

-------------------199 Single-voice Organ resistor board; Circuit No. 19; 1-1 / 2 by 4-1/2-inch board.

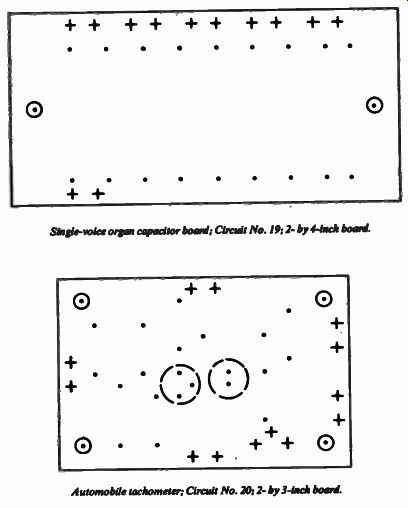

----------------------201 Single-voice organ capacitor board; Circuit No. 19; 2- by 4-inch board.
Automobile tachometer; Circuit No. 20; 2- by 3-inch board.
KEY TO DRILLING SYMBOLS
•No. 60 drill (0.040 inch)
+ No. 58 drill (0.042 inch)
No. 32 drill (0.116 inch)

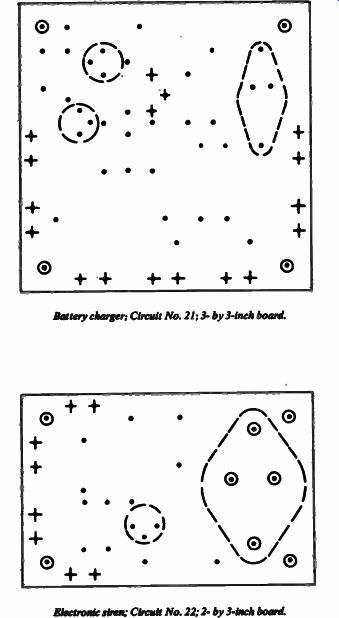

---------------------203 Battery charger; Circuit No. 21; 3- by 3-inch board.
-----------------------Electronic siren; Circuit No. 22; 2- by 3-inch board.

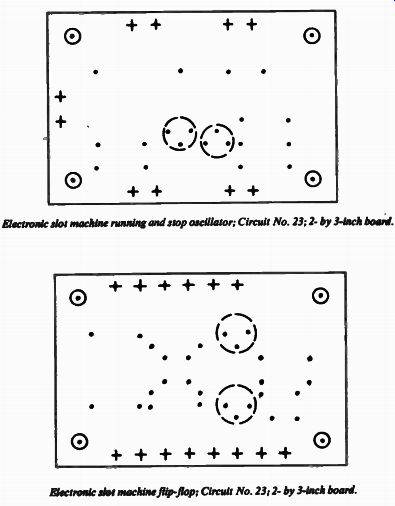

--------------------205 Electronic slot machine running and stop oscillator; Circuit No. 23; 2- by 3-inch board.
Electronic slot machine flip-flop; Circuit No. 23; 2- by 3-inch board.
KEY TO DRILLING SYMBOLS
• No. 60 drill (0.040 inch)
+ No. 58 drill (0.042 inch)
®No. 32 drill (0.116 inch)

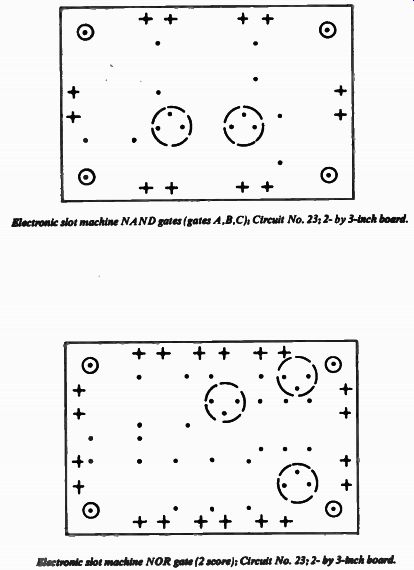

------------------207 Electronic slot machine NAND gates (gates A ,B,C); Circuit No. 23; 2- by 3-inch board.
Electronic slot machine NOR gate (1 score); Circuit No. 23; 2- by 3-inch board.

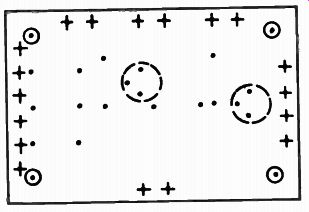

---------------209 Electronic slot machine NOR gates (scores 10 through 100); Circuit No. 13; 2- by 3-inch board.
KEY TO DRILLING SYMBOLS
•No. 60 drill (0.040 inch)
+ No. 58 drill (0.042 inch)
No. 32 drill (0.116 inch)

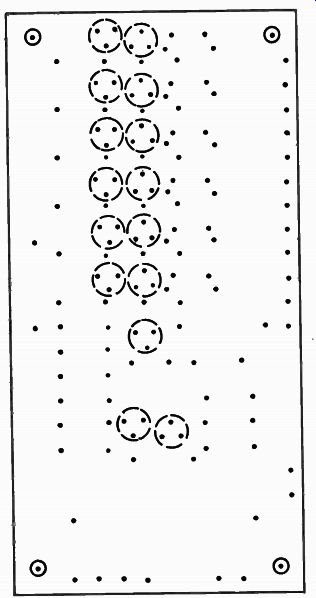

----------------211 Electronic die digital pulser and six-stage shift register; Circuit No. 14; 3- by 6-inch. board
--------------------213 Electronic-die indicator-lamp gate and driver circuit; Circuit No. 24; 3- by 6-inch board.

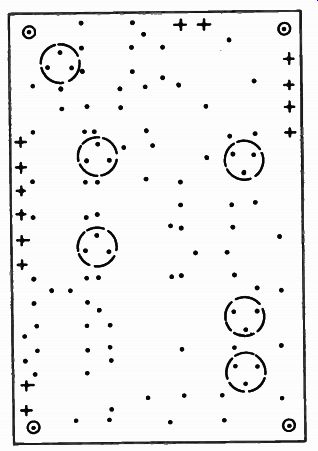

------------------215 liF0 calibrator; Circuit No. 28; 3- by 4-1/2-inch board.
KEY TO DRILLING SYMBOLS
•No. 60 drill (0.040 inch)
4- No. 58 drill (0.042 inch)
No. 32 drill (0.116 inch)

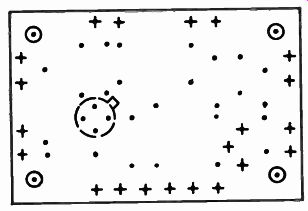

-------------------217 Frequency-selective af amplifier; Circuit No. 34; 2- by 3-inch board.
KEY TO DRILLING SYMBOLS
•No. 60 drill (0.040 inch)
+ No. 58 drill (0.042 inch)
No. 32 drill (0.116 inch)
------
++++++++++++
