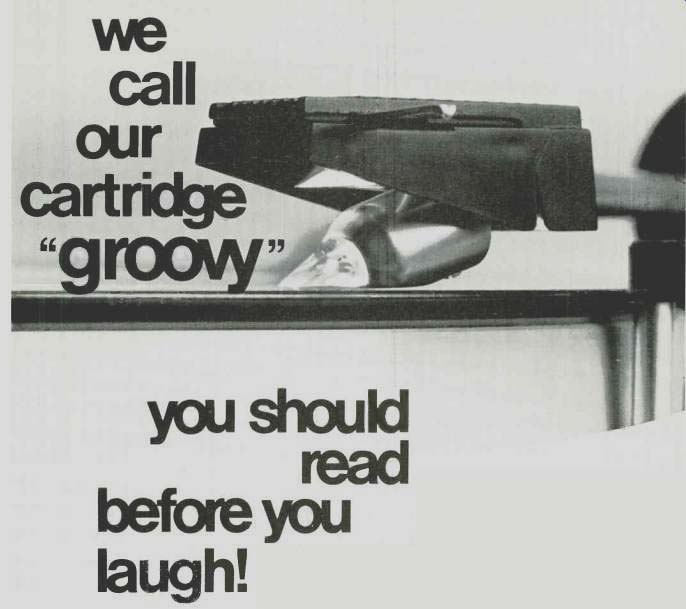

Cartridge design is no joke with our talented, imaginative Danish designers.
When they say "groovy", they're talking about the Bang & Olufsen
SP-12 cartridge and its high compliance, excellent frequency response ... and
amazing channel separation.
---They call it "groovy" because an ingenious, exclusive Micro-Cross mount for the stylus allows the solid one-piece diamond to float freely in the record groove, reach the most sensitively cut undulations. The result is crystal clear reproduction of every tone hidden in a record.
---Your hi fi dealer knows the story of Bang & Olufsen cartridges and the Micro-Cross design that is carefully created in Denmark, presently earning rave notices from European hi fi experts, and now available in the United States for the first time. Ask him about us. Or write for details now.
SPECIFICATIONS
Stylus: Naked Diamond (5x17) µ Elliptical (LP).
Frequency response: 15-25,000 Hz ±3 dB, 50-10,000 Hz ±1 1/2 dB.
Channel separation: 25 dB at 1,000 Hz 20 dB at 500-10,000 Hz.
Channel difference: 2.0 dB.
Compliance: 25 10^-6 cm/dyne.
Tracking force: 1.0-1.5 grams.
Output: 1.0 mV/ cm/sec. 5.0 mV average from music record.
Recommended load: 47 K ohms.
Vertical tracking angle: 15° Weight: 8.5 grams.
Mounting: 1/2" Standard 5-Terminal connection incl. separate ground pin. Balanced or unbalanced.
Replacement Stylus: Original (5X17) µ Elliptical (LP), type: 5430 or 15 µ Spherical (LP), type: 5429. MODEL SP-12 $69.95
Bang & Olufsen of America, Inc.
525 EAST MONTROSE/WOOD DALE, ILLINOIS 60191, USA
(Audio magazine, Oct. 1970)
