AUDIO CASSETTE. FIRST.

LASER OPTICAL VIDEODISC. FIRST.

COMPACT DISC. FIRST.

AMERICA. AT LAST

PHILIPS. SECOND TO NONE.

Americans are generally more aware of our inventions than they are of our name.

Yet those "Firsts"--from the ubiquitous audio cassette to the flawless sound of the compact disc player--are just a few of the breakthroughs Philips is known for.

Philips of the Netherlands is one of the leading electronics companies in the world. With our vast research and development facilities, we have long had a commitment to leadership in consumer electronics that few, if any, can match.

Now Philips is here. Not Philips technology under someone else's name.

But the real thing from Philips.

As a preview to our full line of electronics, we've selected four of our most exciting audio products: the CD960 Compact Disc Player; FR980 Audio/Video Receiver; FA960 Integrated Amplifier; and the DAC960 Digital-to-Analogue Converter.

In the next few pages you'll be reading about the equipment that set the standards for audio technology around the world.

And now it's here in America. At last.

For more information, and for your nearest Philips dealer, can-800-223-7772.

WORLD-CLASS TECHNOLOGY. EUROPEAN EXCELLENCE.

PHILIPS




PHILIPS 16-BIT 4X OVERSAMPLING

SPECIALLY SELECTED PHILIPS D/A CONVERTER AND DIGITAL FILTER

CDM-1: CAST ALUMINUM PROFESSIONAL DISC DRIVE

NON-RESONANT DIE-CAST CHASSIS

4 SEPARATE POWER SUPPLIES

HIGHLY REFINED CLOSE TOLERANCE ANALOG ELECTRONICS

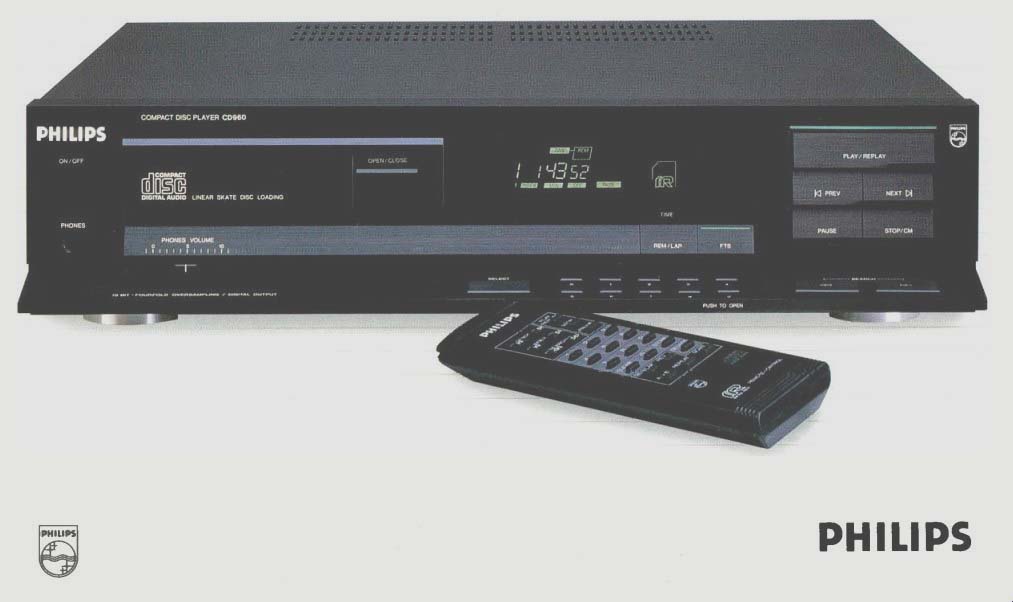

PHILIPS CD960 Compact Disc Player

Philips, the most respected name in European audio and video, brings that world-class, state-of the-art technology and design to America in the new Philips CD960 compact disc player. The CD960 is truly Philips' Reference Standard CD player. It's a serious audiophile component of outstanding mechanical construction with excellent analog and digital engineering. The 960 reflects an understated, yet elegant design which will complement the finest ancillary electronics. It's designed as a total system, by engineers who have the "inside" depth of knowledge that comes only from Philips, "The Creators of Compact Disc".

Superior Digital-to-Analogue Conversion. The 960 features a select high-resolution version of Philips' acclaimed TDA1541 dual 16-bit DIA converter chip. The chip is created for Philips Reference Standard CD players by a special selection process, producing a chip with superior low-level linearity and improved signal-to noise. Close tolerance high-grade polystyrene capacitors are used with the D/A converter to insure the most accurate conversion. It delivers the maximum information available from the 16 bit CD format.

The Philips 1541 is known for its unique chip architecture featuring "Diode-Transistor Bit Switching" requiring no sonically degrading "de-glitcher" circuits common in other "high-end" players. This Philips breakthrough design places separate left and right channel converters on a single chip for maximum channel separation (105 dB+), excellent phase linearity (±0.2°) and accurate clock sync over the life of the chip.

Superior Digital Filtering. The 960's select D/A converter is mated to a Philips 4X oversampling digital filter, also specially selected for superior performance.

Philips pioneered 4X oversampling and has included it in its players since the birth of CD; our knowledge of digital filters is unequalled in the industry.

Philips digital filtering provides extremely effective elimination of unwanted ultrasonic noise generated in digital circuits by pushing the digital clock frequencies further from the audio band (from 44.1 Khz to 176.4 Khz). The select Philips 7220 dual digital filter used in the 960 is a new design yielding improvements in distortion, dynamic range and signal-to noise, with a dramatic improvement in low-level linearity.

Superior Analogue Electronics. The Philips digital filter and D/A converter include "response compensation" which allows the use of a "gentle" third-order "Bessel" analogue filter. This is known to provide less phase shift, better transient response and a flatter frequency response than typical "steep" analogue filters used in other designs. The quality of the analogue filter is a key to sonic excellence. As you'd expect, the analogue filter in the 960 uses only audiophile-grade components such as "Elna Cerafine" ceramic powder capacitors.

Four separate power supplies are used. Each is optimized to a specific function and designed for maximum isolation between the analog, digital, servo and display sections. Circuit board design is computer optimized for superior analogue/digital isolation with strategically selected grounding points enhanced by copper plated screws for improved grounding and lower noise.

Philips Single-Beam Laser Assembly. A Philips single-beam laser assembly is used which pro vides lightning quick access and superior disc tradability due to the lower inherent mass of the radial arm system.

Maximum-Strategy Error Correction. This exclusive Philips single-chip decoder uses "Adaptive Error Correction" which has 60 strategies of error correction to correct up to 15 frames of information. Large burst errors up to 8 digital samples long, are concealed by Philips "8 Sample Interpolation':

But perhaps the most important feature of all is the Philips name itself. World-class technology...European excellence... now available in America.

World-Class technology, European Excellence


------ The disc drive is a Philips CDM-1 diecast aluminum drive used in Philips pro-players.

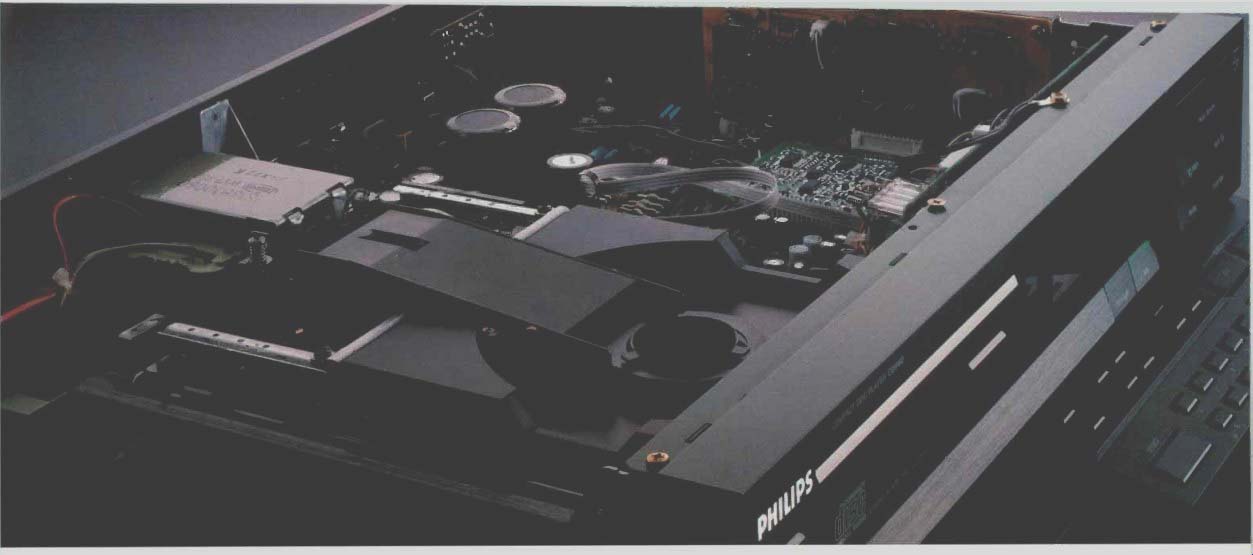

----- Excellent Mechanical Construction. The CD960's mechanical construction not only makes a long-lasting product, but offers performance benefits as well. The chassis is a 4.4 pound die-cast structure that is non-resonant, non-magnetic and provides a solid foundation to mount all key components.

The disc drive is a Philips CDM-1 die-cast aluminum drive used in Philips pro-players. This non-resonant design is mounted on massive tuned rubber dampers, with the result being reduced playback errors and lower distortion.

The disc tray is a heavy-duty all metal design with magnetic clamping for better rotational stability. Two motors are used, one for the tray movement and one for disc positioning. Finally, de tails such as the acoustically damped top cover and the chimney style heat sink make any remaining resonances insignificant.

CD 960 FEATURES INCLUDE:

Dual, 16 bit D/A converter with 4x oversampling

Favorite Track Selection (FTS), exclusive CD programming system

Die-Cast Aluminum nonmagnetic main- and sub-chassis

Fast track access averaging just 1 second

Copy Pause automatically inserts 4-second intervals for cassette recordings

New all-integrated digital electronics with single beam pickup

Touch-to-close 2 motor front loading drawer with anti-jamming protection

10 key pad selection of tracks, indexes or times

Direct key random access programming of up to 20 tracks

Infrared full function remote control

High quality headphone amplifier with volume control

Player status display shows full information about player conditions at all times

Play/Replay, Pause, Previous and Next keys for easy access to favorite tracks

Search Forward and Reverse keys with 3-speed search keys

Repeat key to repeat the entire disc or specific portion

Scan key to play the beginning of each track on the disc

Maximum strategy decoding and error correction

Optical coupler for digital out as well as electrical digital out

Large capacity ceramic powder capacitors for top audio performance

Four separate power supplies drive digital, servo, display and analog circuits

Dedicated servo module with 2 high precision servos integrated to higher degrees than ever

Copper heat sinks for best heat conduction

Extensive acoustic damping throughout

SPECIFICATIONS

Playback System : Compact Disc Digital Audio

Typical Audio Performance (20-20,000Hz unless stated otherwise)

Frequency Range : 2 Hz-20,000 Hz

Amplitude Linearity

Phase Linearity

Signal-to-Noise Ratio

Dynamic Range

Channel Separation

THD (Total Harmonic Distortion incl. noise)

Intermodulation

Out-band rejection (24.1 kHz)

Wow and Flutter Optical Readout System

Laser Type

Numerical Aperture

Wave Length

: ±.01 dB

: ±.2°

: >105dB

: >% dB

: >105dB

: >0.0015% (1kHz)

:-90dB (at max. output level)

: >60dB

: Unmeasurable

: Semiconductor Al Ga As

:.456

: 7£30 nm Connections

Line Out

Maximum Output Level (at MSB)

Min. load impedance

Digital Out

Max. Output Level

Load Impedance

Optical Output

Remote Control

Headphone; Headphone Amplifier (20-20,000 Hz unless stated otherwise)

Analog Output (L/R)

Output Impedance

Load Impedance Range

Output Power

Frequency Range

Channel Unbalance

Signal-to-Noise Ratio

Dynamic Range

THD (Total Harmonic Distortion incl. noise)

Intermodulation

Channel Separation

Voltage

Power Consumption Cabinet/General

Material/Finish

Dimensions (HxWxD)

Weight

: 2x RCA, gold plated

: 2 v RMS, typical

: 10K ohms

: 1x RCA, gold plated

:.5v p-p

: 75 ohms

: 1x Toslink

: RC-5 system

: 8-2,000 ohms Performance

: max. 5.6 v RMS ±0.5dB (continuous variable)

:150 ohms

: 8-2K ohms

: 35 mW at 32 ohms 30 mW at 600 ohms 20-20,000 Hz ± .1 dB

: ± .5 dB

: >93 dB

: >90 dB

: <.003% at 600 ohms

: <.003% at 600 ohms

: >75 dB

: 120 v AC

: 30 W Approx.

: Metal/aluminum/ polystyrene lacquered

: 4.0 x 16.8 x 15.3

: 21.11bs.

Printed in U.S.A. 01988 Philips Consumer Electronics Company. Specifications subject to change without notice.




BUILT-IN DOLBY® SURROUND DECODING AND AMPLIFICATION

HIGH CURRENTILOW IMPEDANCE DRIVE CAPABILITY FTC RATED 125/15 WATTS AT 8 OHMS

7 BAND GRAPHIC EQUALIZER WITH ACOUSTIC MEMORY

MOTORIZED MAIN VOLUME CONTROL

50-KEY UNIVERSAL REMOTE CAN CONTROL 10 SOURCES AND LEARN CODES FROM OTHER REMOTES

"RECORD OUT" SWITCH-PARALLEL RECORDING

VIDEO SPLIT SCREEN WITH VIDEO ENHANCEMENT SWITCH

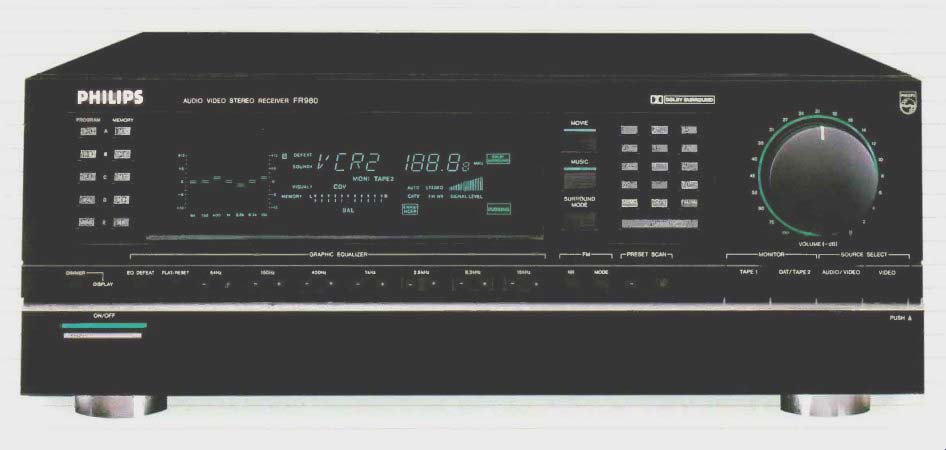

PHILIPS FR 980 Audio/Video Receiver

Built-in Dolby Surround decoding and amplification for true home theater enjoyment. There's no more thrilling home entertainment experience than watching a Hollywood hit that's encoded with Dolby Surround. The powerful FR 980 can decode those signals and has a built-in amplifier to drive the rear-channel speakers (15 watts, FTC rated). The media room truly becomes a personal movie theater. Philips engineers have also added their own improvement to the FR 980's equalization circuits to enhance the Dolby Surround to create Music and Movie modes. This state-of-the-art receiver also has surround mode and ambience control switches to vary tonal quality depending on source material to add more depth and reality as well as individual spatial, matrix, stereo and mono functions. The FR 980 is a true AIV centerpiece for the demanding consumer who wants top quality audio performance to compliment the latest video breakthroughs.

High current/low impedance drive capability. This powerful receiver can effectively drive the most complex 8 and 4 ohm speakers at 125 watts (FTC) and 200 watts (DIN) respectively. More importantly, the FR 980 can deliver the extra power required for those demanding musical passages that only last an instant yet highlight the difference between merely good audio equipment and the best. Philips engineers have developed a superior receiver that offers the cleanest sound under the most demanding conditions.

7 band graphic equalizer with acoustic memory customizes sound for individual rooms. Graphic equalizers can exactly tailor the output of your components to the acoustic conditions of your listening room. Philips' 7 band graphic equalizer uses push-button electronic controls for precision adjustments. The FR 980 has acoustic memory that features 4 factory programmed graphic EQ curves as well as offering the user 5 adjustable memory presets.

Motorized main volume control for precise adjustments. The motor-driven volume potentiometer of the FR 980 offers superior signal-to-noise ratios at all volume levels. Because of the wide dynamic range of digital technology, exact volume control adjustment is more critical than ever. Philips engineers have incorporated the technology of professional sound equipment into this full-functioned receiver.

50-key universal remote can control 10 sources and learn codes from other remotes. Only Philips technology can offer a remote like the one supplied with the FR 980. Of the 50 keys available, 37 are programmable while 5 master keys offer an additional 50 commands. The remote can balance the surround sound system from the listening position. As a "smart" remote, it can learn the commands of remotes from other manufacturers' components. A large, clear LCD readout keeps the user completely informed regarding all conditions. Ten sources can be handled by this smart remote including amp, CD, Tape, TV, tuner, DAT, CD-V, VCR 1 and VCR 2 plus Teletext decoder. Philips state-of-the-art technology at its best.

"Record Out" switch allows for parallel recording from 4 sources. This versatile feature allows the consumer to make recordings from any of 4 inputs (Tuner, phono, CD, CD-V) while listening to any source. This convenience, found on only the best audiophile components, effectively doubles the uses for the FR 980.

Video split screen with video enhancement switch to sharpen image. Since the FR 980 was designed with optimum video quality as one of its mandates, the latest enhancement circuits have been built in. With the Video Split Screen, the viewer can watch the video source and determine exactly what the video enhancement has done to the image.

FR 980 FEATURES INCLUDE:

Powerful A /V receiver for the demanding audio- and videophile

Built-in Dolby Surround decoding and amplification

Front channels rated 125 watts, 15 watts rear channels (FTC rated)

Dynamic Power of 180 watts/8 ohms, 290 watts/4 ohms, 200 watts12 ohms (front)

Surround mode switch featuring matrix, spatial, stereo, mono as well as Dolby Surround

7 band graphic equalizer with acoustic memory to customize settings for individual room environments

50-key universal audio/ video remote with LCD display

Motor driven rotary volume control for front and rear channels

Digitally synthesized AMIFM tuner with 19 presets

Video split screen incorporating video noise reduction to sharpen image

Record Selector allows for parallel recording from any source

Bright, clear display of all major functions

2 Phono settings available (MM/MC)

VCR and Tape Copy buttons for easier dubbing

Scanning function for AMIFM tuner

Ambience control switch for Jazz, Rock, Movie and Orchestra modes

Full complement of 9 audio inputs, 4 audio outputs, 4 video inputs and 3 video outputs plus 4 AC outlets

AM and FM antennas supplied

Headphone outlet on front for easy monitoring of sound sources

Normal/Cable antenna selector

FM noise reduction

Display illumination level control

Pre-out/Main-in connections

Dolby Surround calibration control

FR 980

SPECIFICATIONS

Amplifier Tuner Output (both channels simultaneously driven) Output Power (FTC Rated)

at 8 ohms (20-20,000 Hz; D=.01%) (40-20,000 Hz; D=.5%)

at 4 ohms 200 watts/channel

:125 watts/Front channel

: 15 watts/Rear channel Dolby® is a trademark of Dolby Laboratories Incorporated.

Printed in U.S.A. 01988 Philips Consumer Electronics Company.

Dynamic Power Ratings

at 8 ohms : 180 watts

at 4 ohms : 290 watts

at 2 ohms : 380 watts Signal-to-Noise Ratio

Phono : 75 dB

Linear : 93 dB Tuner/FM Section

Signal-to-Noise Ratio (Mono/Stereo) : 83.175 dB

THD (Total Harmonic Distortion) : .1%/ .2%

Sensitivity : 13.5 dBf /1.3 uV

Stereo Separation (1 kHz) : 50 dB

Image Rejection (98 mHz) : 75 dB

Frequency Range : 87.5-108 mHz Tuner/AM Section

Signal-to-Noise Ratio : 50 dB

THD (Total Harmonic Distortion 1 kHz, 30% mod.) : .5%

Sensitivity : 20 uV

Frequency Range : 520-1610 kHz Dolby Surround Section

Signal-to-Noise Ratio :

(90 dB)

Delay Time : 20 mV

Input Sensitivity : 150 mV125K ohms Video Section

Input Sensitivity : 1 v p-pi75 ohms

Output Level : 1 v p-pI75 ohms Equalizer Section

Frequencies

Equalizer Level

Voltage Cabinet/General

Cabinet Material

Dimensions (WxHxD)

Weight Specifications subject to change without notice.

: 64,150,400,1K, 2.5K, 6.3K, 15K

: + or- 12 dB

: 120 v AC

: Metal

: 16.8 x 5.8 x 15.2 inches

: 35 pounds

-----------



HIGH CURRENT/LOW IMPEDANCE DRIVE CAPABILITY...FTC RATED 100 WATTs AT 8 OHMS, 125 WATTS AT 4 OHMS

SEPARATE POWER SUPPLIES/HEAT SINKS ...FOR MAXIMUM CHANNEL SEPARATION

PRECISION 4 SECTION VOLUME CONTROL...FOR OPTIMUM SIGNAL-TO-NOISE RATIOS AT ALL LEVELS

"CD DIRECT" FUNCTION FOR PRISTINE DIGITAL SOUND

"RECORD SELECIUR" ALLOWS FOR PARALLEL RECORDING

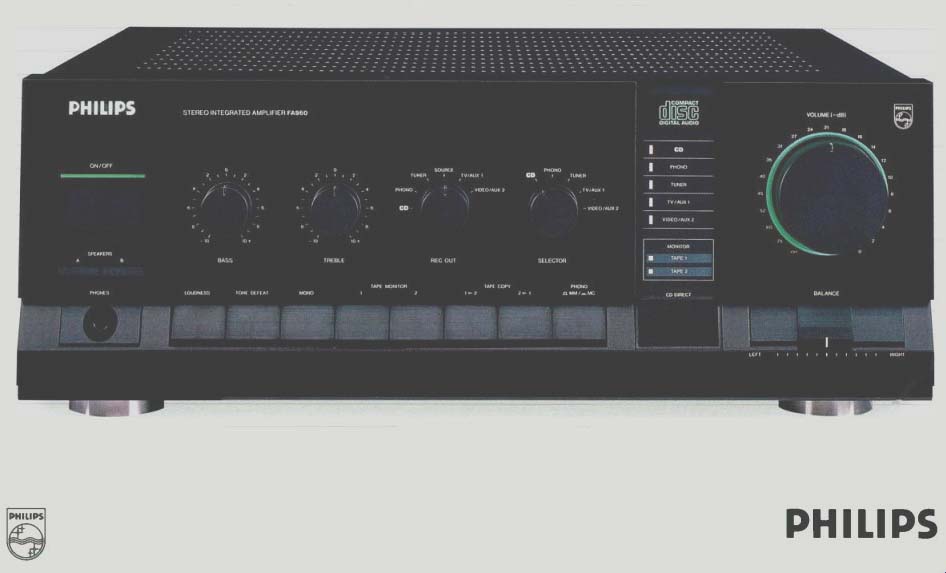

PHILIPS FA 960 Integrated Amplifier

Philips, the most respected name in European reference standard audio components brings European state-of the-art technology and design to America in the new Philips FA 960 Integrated Amplifier.

This is Philips most powerful integrated amplifier and it can efficiently drive the most complex 8 and 4 ohm speakers at 100 watts and 125 watts respectively (FTC rated). More importantly, the FA 960 can deliver the extra power required for those demanding musical crescendos that only last an instant yet show the difference between good audio equipment and the best. (Dynamic Power ratings are 120 watts/8 ohms, 180 watts/4 ohms, 250 watts/2 ohms.) Philips engineers, by improving drive capability of the power stages and overload recovery time, have developed an amplifier that offers the cleanest sound under the most demanding conditions.

The FA 960 has separate power supplies for pre amp and amplifier sections as well as for left and right power amp sections. By incorporating separate rectifiers and extra large storage capacitors for each channel output stage, dynamic crosstalk is effectively suppressed. Also by eliminating the thermal coupling between the left and right power transistors, one output stage is not heated up by the other and total heat can be effectively dispersed. Both of these factors add up to the maximum separation required for accurate compact disc reproduction.

By using a 4 section potentiometer (2 sections per channel), the FA 960 offers the best signal-to-noise ratios at all volume levels. Because of the wide dynamic range of the compact disc, volume control circuits are extremely important and Philips engineers have incorporated the technology of professional sound equipment into this powerful integrated amplifier. Crosstalk has been noticeably reduced compared to conventional controls.

Through gold-plated inputs on the FA 960, it is possible to hear the pristine sound of compact disc technology in all its glory. By using CD Direct, the signal travels directly to the pre-amp which is set to a flat response.

Balance, volume and loudness are the only operative controls and no other circuitry gets in the way of the digital input. And with CD Direct, the FA 960 achieves a signal-to-noise ratio of 106 dB. This top-of-the-line integrated amplifier also features inputs for additional components that will please the most demanding audiophile.

The Record Selector versatile feature allows the user to make recordings from any of six inputs (CD, Phono, TX/Aux 1 and Video/Aux 2) while listening to any source. This convenience, found only on the best audiophile components, effectively doubles the number of uses for the FA 960.

But perhaps the most important feature of all is the Philips name itself. World-class technology...European excellence...now available in America.

FA 960

FEATURES INCLUDE:

High Current, Low Impedance Drive capability

FM rated at 100 watts (8 ohms), 125 watts (4 ohms)

Dynamic Power ratings of 120 watts/8 ohms, 225 watts/4 ohms, 250 watts/2 ohms

Separate power supplies and heat sinks for each channel

CD Direct function and 6 other inputs

Record Selector for parallel recording

Tone Defeat key to bypass bass and treble controls

Gold plated terminals for CD Direct and Phono inputs

High accuracy phono amplifier for either MC or MM cartridges

Equalization curve to IEC standard, better than RIAA

Active tone control

Parallel, selectable loudspeaker outputs for each channel

Muting/protection circuit guards amps and speakers from overload

Large screw-down speaker terminals accept large diameter cables

Source and tape selected display. Compact disc logo lights on CD Direct

All metal cabinet for full shielding

Headphone output on front of cabinet

Gold plated speaker relays

Loudness and mono switches

Tape Monitor keys monitor signal recorded on Tape 1 and Tape 2

Tape copy keys ease dubbing from 2 tape (or cassette) decks

Precision slide balance control

Bipolar push-pull output stages FA 960 SPECIFICATIONS Power output (both channels simultaneously driven)

Output power (FTC Rated) at 8 ohms

(20-20,000 Hz; D s 0.03% 100 watts at 4 ohms

(20-20,000 Hz; D 5 0.05% 125 watts Dynamic Power Ratings

at 8 ohms 120 watts at 4 ohms 225 watts at 2 ohms 250 watts Distortion THD (Total Harmonic Distortion) .008% at 100 watts at 8 ohms

Intermodulation

Power Bandwidth (D < .03%)

Frequency Response

Line Inputs

Phono Input Signal-to-Noise Ratio

Line Inputs (CD Direct)

Phono Input

Stereo Separation (CD Direct)

Phono Overload (at 1kHz, D = 1.0%)

Damping Factor Controls

Bass

Treble

Loudness

Balance Control Inputs (with sensitivity for rated output)

Phono MC

Phono MM

Compact Disc

Tuner

TV/Aux 1

Video/Aux 2

Tape 1

Tape 2 Outputs

Tape 1 and 2

Speakers 1 and 2

Headphone

Power Supply

Power Consumption Cabinet/General

Material

Dimensions (WxHxD)

.03% at 100 watts at 8 ohms 10-30,000 Hz at-3dB 18-70,000 Hz, ±1.0 dB 40-20,000 Hz, ± .5 dB 106 dB 85 dB (MM Phono) 75 dB (MC Phono) 75 dB at 1 kHz 60 dB at 250-10,000 Hz 150mV for MM Phono 20 mV for MC Phono 180

+10 to-10 at 100 Hz

+10 to-10 dB at 10 kHz

+6 at 100 Hz, +4 dB at 10 kHz

0-50 dB

.25 mV at 100 ohms 2.5 mV at 47K ohms 150 mV at 25K ohms 150 mV at 25K ohms 150 mV at 25K ohms 150 mV at 25K ohms 150 mV at 25K ohms 150 mV at 25K ohms 150 mV at 220 ohms 2-4-8 ohms 8-1,000 ohms 120 volts AC 360W Metal 161/2" x 53/4" x 131/4" (1 kHz) Printed in U.S.A.©1988 Philips Consumer Electronics Company. Specifications subject to change without notice.




ULTRA HIGH FIDELITY, DUAL 16-BIT DIA CONVERTERS FOR SUPERB DIGITAL SOUND

3 SEPARATE POWER SUPPLIES WITH 3 INDIVIDUAL TRANSFORMERS

DAT READY.

AUTOMATICALLY HANDLES 3 (32, 44.1 AND 48 KHz) SAMPLING FREQUENCIES

OPTICAL DIGITAL INPUT FOR PUREST, NOISE-FREE DIGITAL SOUND

BALANCED, DIRECT AND VARIABLE OUTPUTS IMPROVE DETAIL FOR TOP PERFORMANCE

PHILIPS DAC 960 Digital-to-Analog Converter

------------

Ultra high fidelity, dual 16-bit D/A converters. Philips engineers have aimed for the ultimate in digital con version and have achieved it with the DAC 960. By using their reference standard dual, 16-bit chip plus opto coupling between the digital filter and converter, the DAC 960 achieves almost pristine signal clarity. Three optocouplers link the specially selected digital filter to the D/A converter for absolutely noise-free digital signal transfer. Precision engineered 3rd order analog filters provide meticulous final grooming for the output signal.

Signal-to-noise ratio has been improved to >101 dB along with complete suppression of passband ripple. The DAC 960 can be used to upgrade an older CD player to the finest Philips quality, expanding a system needing more inputs, or as an audiophile quality digital pre amplifier. More than a digital-to-analog converter, this is a reference standard DAC for the truly discerning consumer.

Three separate power supplies with 3 individual transformers. Philips has taken state-of-the-art technology from the sound studio and incorporated it into the DAC 960. Three completely separate power supplies, each with its own magnetically screened transformer, drive the digital input/output circuitry, the D/A converter and the analog circuits. Each system is isolated, eliminating any interference or crosstalk between circuits. In addition, the analog circuits, which are sensitive to power supply changes, use a very efficient, heavy duty toroidal transformer. Maximum separation is ensured for the very best digital reproduction.

DAT Ready. Automatically handles three sampling frequencies. Whether it's from a compact disc or digital audio tape, the DAC 960 features an automatic sampling frequency auto-lock for either 32, 44.1 or 48 kHz. No matter which source is used, the DAC 960 automatically locks onto the proper sampling frequency for absolute accuracy. No need for manual adjustment and the frequency used is clearly displayed on the front of the unit.

The signal then travels to reference standard dual, 16-bit DAC with 4x oversampling, guaranteeing the finest digital sound.

Optical digital input for purest, noise-free digital sound. Along with opto-coupling between the digital filter and converter chip, the DAC 960 features a Direct Optical input. The supplied fiber optic cable is compatible with Philips CD players and most other digital optical sources. For those who demand the best, the DAC 960's optical digital input provides a truly pure signal with no possibility of interference from electromagnetic or electrostatic sources. A pure, noise-free digital signal is routed to the converter input, analog filters and pre amplifier. The Direct Optical Input allows the consumer to be ready for the next generation of digital peripherals including CD-I and CD-ROM.

Balanced, direct and variable outputs for top performance. Philips brings even more technology from the sound studio into the DAC 960 by using the same output transformers found on Philips professional CD players for the balanced outputs. The unit's direct output eliminates all possible noise at the analog amplifier input. The variable output makes it possible to set the exact level required at the power amp, enabling the DAC 960 to act as a futuristic pre-amp for the digital audio systems of the 1990s.

DAC 960

FEATURES INCLUDE:

Ultra high fidelity D/A converters optically coupled to Philips state of the art digital filters

3 Separate power supplies with 3 individual transformers

DAT Ready. (Handles 3 multisampling frequencies) from any digital source (CD, DAT)

Optical digital input with supplied fiber optic cable

2 electronic digital gold-plated inputs also available

Absolute phase inverter control ensure proper imaging with any source

Balanced, direct and variable outputs with 2-stage muting

Output transformers are those used in Philips professional CD players

Direct outputs eliminate all possible noise at analog amplifier input

Variable Output allows exact setting at power amplifier enabling DAC 960 to act as audiophile pre-amp

Heavy duty, die cast chassis weighing over 4 pounds

Solid, shock absorbing feet to eliminate vibration and resonance

All components selected for their audiophile characteristics

Copper Heat sinks ensure proper heat conduction

large capacity ceramic powder capacitors for top audio performance High quality headphone amplifier with volume control Inputs

System 1,1 x RCA

System 2,1 x RCA

Optical System, 1 x Tos-Link Monitor In, 1 x RCA Outputs

Fixed, 2 x RCA

Load Impedance

Variable, 2 x RCA

Load Impedance

Balanced Output, 2 x XLR

Load Impedance (Balanced) (Unbalanced)

Headphone

Monitor Out, 1 x RCA

: .5 v p-p, 75 ohms

: .5 v p-p, 75 ohms

: .5 v p-p, 75 ohms

: 2 v RMS at 100 ohms

: >10K ohms

: 4 v RMS at 100 ohms

: >10K ohms

: 2 v RMS at 100 ohms

: 600 ohms

: 600-50K ohms

: 8-1,000 ohms

: .5 v p-p, 75 ohms

Headphone Amplifier Performance (20-20,000 Hz unless stated otherwise)

Output Impedance

Load Impedance Range

Output Power

Frequency Range

Channel Balance

Signal-to-Noise Ratio

Dynamic Range

THD (Total Harmonic Distortion incl. noise at

: 220 ohms

: 8-1K ohms

: 30 mW at 32 ohms 50 mW at 600 ohms

: 20-20,000 Hz ± .1 dB

: ± .5 dB

: >93 dB

: >90d8 DAC 960 SPECIFICATIONS Typical Audio Performance (20-20,000 Hz unless stated otherwise) 600 ohms)

Intermodulation at 600 ohms

Channel Separation at

: <.003%

: <.003%

Frequency Range, fixed and variable 600 ohms : 75 dB

: 2-20,000 Hz Power Supply

Frequency Range, balanced : 20-20,000 I-1z Voltage : 120 v AC

Amplitude Linearity : t.01 dB Power Consumption : 35 W

Phase Linearity : ±.2° Cabinet/General

Signal-to-Noise Ratio : >101 dB Material/Finish : Metal/semi-matte black lacquered

Dynamic Range : >% dB Dimensions (WxHxD) : 16.8 x 3.44 x 13.28 inches

Channel Separation :

>100 dB (1 kHz) Weight :18.7 pounds

THD (Total Harmonic Distortion incl. noise) : <.0015% (1 kHz)

Intermodulation :-90 dB (at max.

output level)

Ultrasonic Noise Reduction ( >24.1 kHz) : >60 dB

Printed in U.S.A. ©1988 Philips Consumer Electronics Company.

Specifications subject to change without notice.

---------------

WORLD-CLASS TECHNOLOGY. EUROPEAN EXCELLENCE. PHILIPS.

(Audio magazine, Oct. 1988)

Also see:

Philips CDV488 CD/LD combination player (ad, Dec. 1989)

Magnavox compact disc players (Dec. 1985)

Onkyo Acculinear 18-bit CD player (Nov. 1988)

= = = =

Prev. | Next

Top of Page    Home

Updated: Sunday, 2020-01-26 17:16 PST
