Pioneer
HOME IMPROVEMENT

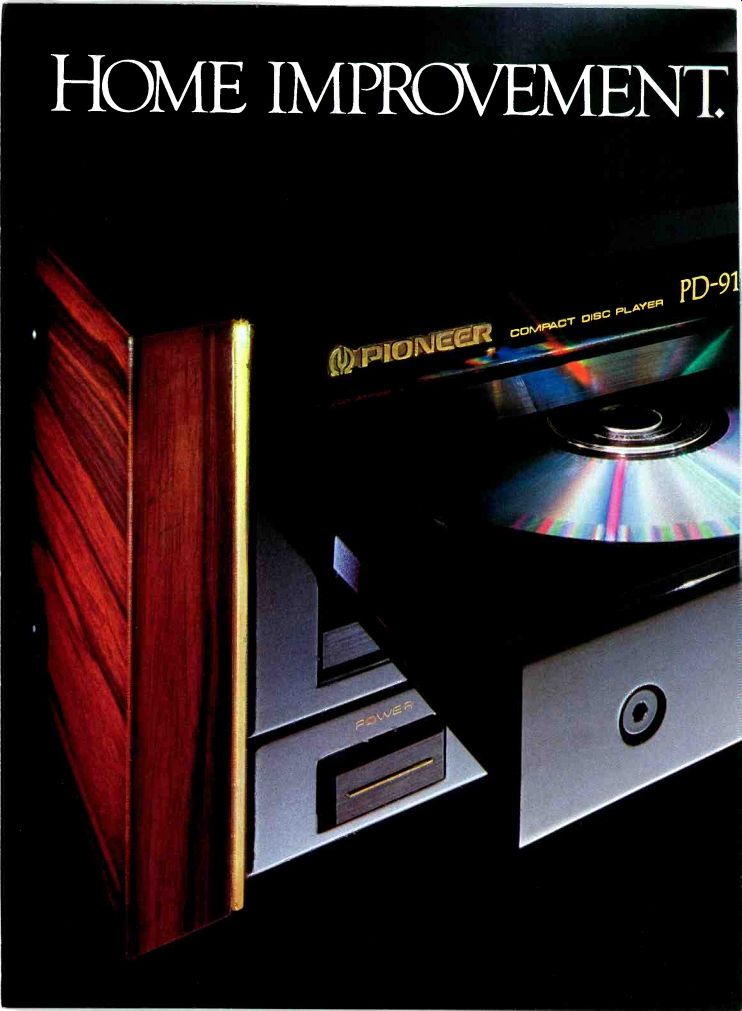

THE ELITE PD-91 FULL 18-BIT CD PLAYER.
If you're still not completely satisfied with CD sound, if you have the nagging feeling something's still missing...you're right. 14-bit, 16-bit or even "floating" 18-bit CD players simply can't deliver all the rich potential of compact disc sound.
It's time for a little Home Improvement a brilliant improvement at that.
Meet the Elite'" SeriesPD-91. The compact disc player that lets you hear CD sound in its fullest glory.
The PD-91 employs 8-times oversampling and full 18-bit linear twin D/A converters to yield an amazing 16-fold improvement in retrieval of ambient cues, harmonic detail and "air" around instruments and vocalists. It's an improvement so dramatic your ears will perk up instantly. To build a player this superior demanded inexeclible attention to detail.
Example The PD-91's analogue circuitry is pure Class A for lowest distortion and highest musicality. Inside, you'd see four separate power supplies and eleven voltage regulators-to keep critical small-signal audio information fire from interference lb additionally minimize electrical interaction, portions of the PD-91'E circuitry are defeat able-like front panel illumination, headphone amplifier and the analogue output section when digital outputs are being used.
The PD-91 incorporates an outboard power transformer, Pioneer's exclusive copper-plated honeycomb chassis and special ceramic components to combat extraneous vibrations that can destroy signal integrity.
The PD-91's special linear motor delivers the world's fastest track access (1/2-second). You also get flexible seven-way pr g, full random play, and, of course, full remote control.
Optical as well as coaxial outputs make the PD-91 future-perfect as well.
Want instant Home Improvement in your music system? Then come treat your ears to the PD-91. For your nearest Elite dealer, call 1-800-421-1404. 01988 Pioneer Electronics. ( USA) Inc., Long Beach, CA
THE ELITE LD-S1 LASERVISION PLAYER.
If you want to discover what looking sharp is all about, it's time you took a look at the LD-S1. Because the LD-S1 not only delivers the world's sharpest pictures, it gives you the world's best sound, stunning digital sound simply unavailable from any VCR.
You'll see cleaner, truer pictures-over 420 lines of resolution-due to Pioneer's exclusive Accu-Focus laser pickup and Video Noise Reduction circuit. Together, they yield an unprecedented 48dB video signal to-noise ratio.
You'll hear the best sounding video ever. Because the LD-S1 uses twin, glitch-free D/A converters and a digital filter with bur-times oversampling to produce an S/N ratio of 105dB.
What's more, our exclusive Full-Floating Disc Drive and Magnetic Disc Clamp isolate and stabilize the disc far remarkably reduced picture jitter-an inherent problem videotape players can't begin to solve.
The LD-S1's 8-bit digital field memory also gives you a new dimension of viewing pleasure.
You'll get perfect pictures on freeze frame, and new effects like still pictures with sound and strobe motion with sound. And now for the first time, you can enjoy all these special-effects while watching movies, opera and concerts on extended-play (CLV) discs.
See the ultimate sight and sound machine at your Elite dealer today. Because in the world of sight and sound, image is everything.
For more information, call1-800-421-1404. 1987 Pioneer Electronics ( USA) Inc., Long Beach, CA
THE ELITE A-91D INTEGRATED AMPLIFIER.
Now that the compact disc has taken the world by storm, ordinary amplifiers are failing their driving test. Because ordinary amplifiers simply can't handle the dynamic range and purer signal that digital sound delivers.
Fortunately, the A-91D is far from ordinary. Because the A-91D is built with one thought in mind-to maximize the performance of digital sound.
With 170 watts per channel into 4 ohm speaker loads, and 120 watts into 8 ohms, the A-91D unleashes digital's full dynamic range. Extra-large capacitors and huge finned cast-iron enclosed transformers further contribute to the A-91D's high current capacity and stability into speaker loads as low as 2 ohms.
Along with all this power comes unprecedented purity.
You can plug the latest CD players with optical outputs directly into the /91D, and reap the rewards of independent digital conversion circuitry with twin, glitch-free D/A converters, a digital filter with four-times oversampling, and an analog lowpass filter made 1h from quality discrete parts. The A-91D also uses Pioneer's exclusive Non-Switching-Type III amplifier circuit to totally eliminate switching distortion. What's more, critical signal paths are kept extraordinarily short for less electronic interference and cleaner sound.
When it comes to digital sound, there's no such thing as good vibrations. That's why the A-91D uses a special anti-vibration honeycomb design in the chassis frame. In isolation barriers between electronic sections. Even in all five insulator feet. A large aluminum volume control knob with a specially balanced brass shaft also absorbs distortion-causing vibration, and printed circuit boards are mounted in rubber for the same reason.
The A-91D is not only ready for digital, it's ready for the future. With six digital inputs (2 optical), and three digital outputs (1 optical).
So if you want your digital sound to drive you to new heights, you need to drive your digital components with the Elite A-91D.
For more information, call 1-800-421-1404.
ELITE BY PIONEER. 01987 Pioneer Electronics (LISA) Inc., Long Beach, CA
THE ELITE M-90 AND C-90 REFERENCE COMPONENTS
Hum, hiss, crosstalk, vibration: distortion in your audio signal. Graininess, specks, flecks, litter: extraneous noise in your video image.
Take out the Garbage
The Elite C-90 pre-amp and M-90 power amp are no-compromise components designed to get rid of it. By keeping critical signal paths as short as possible By offering you direct CD connection. By introducing motorized volume control, separate audio and video power transformers, and unique video processing controls like noise reduction, sharpness and detail. By giving you the purest possible audio and video that digital technology has to offer.
In the words of audio critic Julian Hirsch in Stereo Review, "The C-90's signal to noise ratio is considerably better than that of any CD player... that makes the C- 90 the true peer of any digital sound source-the only pre amplifier we have tested that can make that claim7 The C-90 also cleans up your video. Because it not only controls up to six video components, its video-enhancing circuits actually improve your video image. Now, even rented videotapes take on a whole new look.
But what good is a complete A/V system without remote capabilities? The C-90's "SR" System Remote gives you complete control, plus a unique Motor-Drive Volume Control that eliminates the noise created by typical electronic volume controls.
Where the C-90 leaves off, the M-90 takes over. With 800 watts/channel into 2 ohm loads; 200 watts into 8 ohms:* and remarkably high current capability (47 amps) for low impedance driving, the M-90 delivers the kind of performance digital signals demand. And for unprecedented purity, the M-90 even includes its own volume control for direct connection to your CD player.
The Elite M-90 and C-90 working together. There's just no better way to take out the garbage.
For more information, call 1-800-421-1404.
1987 Pioneer Electronics ( USA) Inc., Long Beach, CA.
True High Fidelity. Engineered in America. True High Fidelity was engineered in America. Surprised? Don't be.
Americans have demanding requirements for sound reproduction. That's why hundreds of thousands of Americans have chosen Acoustic Research loud speakers, car speakers, amps, turntables, cassette decks and compact disc players to be part of their premium audio component systems. AR products provide the utmost in accurate sound reproduction for the music lover.
Where the concert hall ends, AR begins. American Audio Innovation.
Acoustic Research started American Audio Innovation in 1954 with a bold, new advancement in loudspeaker technology called "Acoustic Suspension." This remarkable advancement in loudspeaker design reduced cabinet size requirements and improved fidelity. "Acoustic Suspension" enabled the production of loudspeakers small enough to come out of the basement and into the living room.
The sound improvement in a smaller cabinet was so dramatic that, today, more than 70 different companies have incorporated "Acoustic Suspension" into their loudspeaker designs.
AR. Audio Innovation Continues.
The innovation at Acoustic Research continued from that first, bold, sound engineering feat. Since then, AR has brought more advancements to the stereophonic industry... advancements like the first high fidelity bookshelf loudspeaker.
The Acoustic Blanker . The "dome tweeter." The Tetra Helix mounting plate. Magnetic fluid cooling. And the innovation continues.
Today, Teledyne Acoustic Research has combined the best in sound engineering and award winning design to bring you the newest line of AR products-AR Audio Components, the TSW Loudspeaker Series, the AR Partners and AR's impeccable car loudspeaker line. You'll enjoy the clean line of the audio components and the amazing clarity of every AR speaker. Alone, each AR component or speaker excels.
Combined into a system, Acoustic Research products can provide the ultimate sound experience.
Clean Design, Clear Sound.
The AR CD06 Compact Disc Player and A07 Amplifier.
Acoustic Research makes audio components that meet the demands of today's discerning listener. Introducing the newest additions to the AR line, the CD06 Compact Disc Player and A07 Amplifier.
The CD06 Compact Disc Player uses a fast-acting, computer-driven laser swing arm with a precisely focused single laser beam to read the compact disc's information. AR's 16 bit design achieves the equivalent of 18 bit resolution, featuring four times oversampling with dual digital to analog converters to ensure accurate interchannel phase relationships. AR-designed analog circuitry uses a Gaussian filter to virtually eliminate filter delay and provide good step response which results in a CD player with clear and transparent sound.
The A07 Amplifier is AR's answer to the ideal high fidelity amp.
Designed to deliver power that will reproduce the most demanding sound repertoire, the A07 provides 60 watts of power through dual power supplies to separately drive left and right loudspeakers. Dual power supplies are especially important with a CD player. They ensure that both speakers will be able to reproduce the CD's maximum dynamic range. With the A07 60 Watt Amplifier, the power balance is ideal.

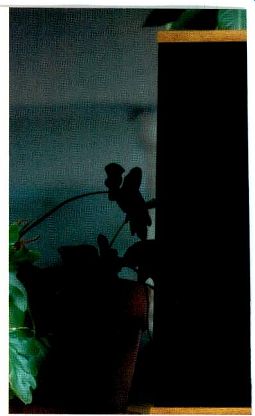

The TSW Loudspeaker Series.
American Engineering Shapes Today's sound.
Presenting the culmination of American engineering...the TSW loudspeaker series. TSW loudspeakers utilize the best in AR sound innovations. "Acoustic Suspension" woofers and liquid cooled tweeters with Tetra Helix' mounting plates are specially combined in every TSW loud speaker to give you unrivalled sound quality in a size and style that is right for your musical taste. Choose your loudspeaker from the TSW Series:
Floor Standing Acoustic Suspension Floor/Shelf Acoustic Suspension Bookshelf Acoustic Suspension Self-Powered A/V Speakers

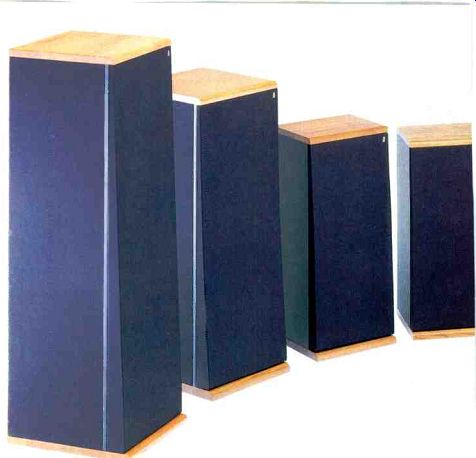

The TSW 810 & 910. Our top of the line floor standing columnars.
Choose from the best. Our TSW 810 and 910 loudspeakers offer you dual woofers on two different planes. One is placed at the front of the speaker and the other at the rear to provide bass power to the limits of audibility. Differing placement of the woofers eliminates loss of output in the mid-bass region caused by room reflections.
In addition, a 1" titanium tweeter with a Tetra Helix TM mounting plate and an acoustic lens provide dynamic treble without beaming or unnatural boxiness. The shape of the Tetra Helix works to distribute any reradiation so that edge diffraction of the tweeter plate does not affect any single frequency. The TSW 810 and 910 have bi-wire capabilities for those who wish to maximize the performance of their loudspeakers.
TSW Floor Standing and Bookshelf Loudspeakers. TSW 100, 110, 210, 310, 315, 410, 510, 610, 710.
AR offers you nine additional TSW loudspeakers with a variety of features to meet your exact stereo system need. All nine loudspeakers are equipped with AR's Acoustic Blanket an exclusive design feature that eliminates the cabinet and grille reflections that blur stereo image. Plus, all speakers feature carbon-loaded polypropylene cones, "Acoustic Suspension" woofers, and liquid-cooled Tetra Helix tweeters.
ACOUSTIC RESEARCH
The TSW 115P Self-Powered Audio/Video Speaker.
The smallest of the TSW loudspeaker series, the TSW 115P contains its own power amplifier to give you astonishing volume levels and unlimited versatility! Use the 115P with a VCR, guitar pre-amp, electronic keyboard, computer music pro gram or any other line level device. The TSW 115P is ideally suited for "surround sound" video applications as well. Drivers on the TSW 115P are shielded so that no harmful magnetic fields escape the speaker cabinet.
This makes the TSW 115P perfect for use near a video screen or computer equipment.
Introducing.
The STC 660 Subwoofer Satellite System
The newest AR innovation, this three-part speaker and subwoofer system gives you a dynamically full range of sound quality in any room without large, unsightly speaker cabinets.
The STC 660 Subwoofer
The Series Tuned Cavity (STC) subwoofer is a newly developed subwoofer that uses two tuned cavities in a series to provide efficient low distortion bass while filtering out unwanted higher frequencies that allow the ear to pinpoint the position of the sub woofer. Compact in size, the STC subwoofer measures just 81/2" x 12" x 19". Sturdy construction lets you stack your components on top of the subwoofer.
Or, the compact size lets you place it easily out of sight.

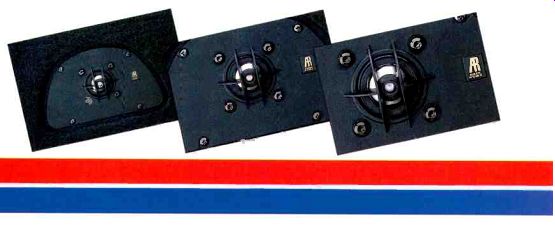

The STC 660 Satellite speakers.
You get the best of AR's loud speaker innovations in the 660 Satellite Speakers-liquid cooled titanium tweeters, poly propylene midrange/woofers, the Acoustic Blanket TM , and Tetra Helix TM tweeter mounting plates.
New Partners in High Fidelity Sound.
The AR Partners Series AR's Partners Series bring you the latest in functional, high fidelity sound. Partners are designed to work in today's varied environments.
Choose from the versatile Powered Partners, the attractive colors of AR's Active Partners, or the durability of the Environmental Partners. AR Partners produce crisp, clear sound reproduction on the patio, in the rec room, the office, or anywhere you want to play your favorite music.
Environmental Partners
Environmental Partners are the perfect remote speaker for your stereo system whether they're placed indoors or out. Small enough to hide behind a plant, Environmental Partners are rugged enough to mount on a boat, deck or patio.
Powered Partners Plug a pair of Powered Partners into any sound source-a portable tape player, portable disc player, musical keyboard or any other place a pair of stereo headphones will work, and get full stereo sound at home, at the beach...anywhere! Party Partners Choose Party Partners to fill your family room or party area with music. A big 10" woofer pumps out bass while the rock monitor shape allows floor placement for deeper bass response.
Rock Partners Powerful Rock Partners have the same triangular shape as other Partners to allow floor or corner placement to boost bass output.
Active Partners Active Partners let you take your music with you! These partners can run on AC or DC current and contain a powerful amp to create a room full of sound from your personal stereo, keyboard, or other line level device.
Hi-Fi on the Road
You can have the same high fidelity sound in your car that you experience at home with AR car audio loud speakers and components. AR car speakers have many of the same quality features that you find in premium loudspeakers for your home features like liquid-cooled tweeters and mica-filled polypropylene drivers.
And then there are the AR car audio extras-specially formulated materials to withstand harsh car environments, solid steel frames and wire mesh grilles. All these features work together to give you true high fidelity for the highway, the drive-in, or wherever the road may lead you.
TELEDYNE ACOUSTIC RESEARCH
330 Turnpike St Canton, MA 02021 617-821-2300 Contact Acoustic Research for the name of the AR Audio Specialists near you.
ACOUSTIC RESEARCH American Engineered home, car and portable high fidelity systems.

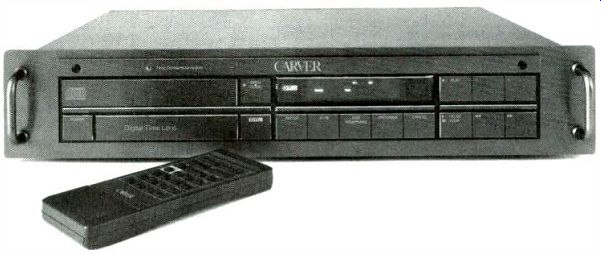

Carver. Digital Discrimination.
BECAUSE ALL CD'S ARE NOT CREATED EQUAL, THE NEW CARVER DTL-200 MK II COMPACT DISC PLAYER IS INTRIGUINGLY DIFFERENT.
The Carver DTL-200 MK II answers the audiophile's demand for a CD Player which provides not only the greater dynamic range and richer bass expected from compact disc technology, but also the musicality, spectral balance and spatial qualities of well executed analog high fidelity recordings.
The new remote control Carver DTL-200 MK II represents the next logical evolutionary step towards marrying the awesome technology of digital play back with Bob Carver's commitment to the re-creation of the live performance. It embodies the latest digital/analog conversion circuitry with oversampling, sophisticated laser system and a wealth of operating features. And it possesses unique Carver circuitry that solves real-world sonic problems associated with commercial CDs.
TIME DOMAIN CORRECTION. The Carver DTL-200 MK II incorporates an important new computer logic innovation that monitors the incoming digital signal for imperfections and "glitches" caused in recording and production. Such errors are immune to conventional error-correction processes because they are actually data anomalies. Yet they can add overall harmonic distortion and cause audible changes in sound quality.
The DTL-200 MK II's Time Domain Correction circuit constantly performs a complex, 25-bit digital calculation on passing data. This high-speed error correction algorithm, in conjunction with a 121-pole digital filter, terminates distortion-causing high harmonics as they occur in the bit steam, The result is frequency response within 1/1000 of a dB of the original, with significant reduction of distortion to less than 0.007%.
PLUS THE DIGITAL TIME LENS. On top of this unerring ability to produce natural, real-sounding music from the CD's digital bits, the Carver DTL-200 MK II has the remarkable Digital Time Lens circuit to insure your listening enjoyment.
When Bob Carver obtained his first compact disc player, he was surprised at the sound derived from most of the compact discs he purchased. The three dimensional musical perspective which his analog system provided in lush abundance on phono discs evaporated into a flat, brittle wasteland. After extensive testing, Bob uncovered two fundamental flaws in almost all compact discs: 1) An unpleasant, harsh spectral energy balance. The overall octave-to-octave energy balance was shifted on the CD towards more midrange above 400Hz; 2) The amount of L-R signal (which carries the spatial detail of the music) on the CD was inexplicably, but substantially, reduced when compared with the amount of L-R signal found on the corresponding analog disc. The difference is obvious in these two oscilloscope photos.
A. Lissajous pattern showing spatial detail (L-R) (L+R) ratio from an LP record.
B. The same instant of music but taken from the CD version. Note the decreased (L-R) content, as shown by the narrowed trace.
Carver's circuitry corrects the ratio of L-R to L+R by performing one extra, but important mathematical operation on the signal stream that ail other CD players fail to perform. This final operation makes all the difference.
The result is a natural sound with more of the three-dimensional information that places us in the same space with performers. You won't need the Digital Time Lens on all CDs. But it is there when you need it.
In the beginning, Carver hoped, indeed he expected, that once recording artists and engineers became more experienced with CD technology fewer and fewer CDs would require the Digital Time Lens. But both laboratory and listening tests reveal that the majority of even the most recently released CDs benefit significantly from the Digital Time Lens.
PACKED WITH USEFUL FEATURES. The Carver DTL-200 MK II makes enjoying Compact Discs a simple exercise in button pushing from your favorite listening chair. You can program any combi nation of up to twelve tracks from a single CD, repeat a specific track or a whole Compact Disc for uninterrupted enjoyment.
Along with the ability to skip forward or backwards song-by-song, a touch of a key allows you to audibly review a disc backwards or forwards at many times normal speed. An A-B Specific Phrase Repeat lets you carefully analyze one section of a performance or simply provide a point of reference in a long, un-indexed symphonic movement.
All functions are displayed on an easy-to-read but subtle LCD display including programming sequence, current selection number, individual and total playing times plus indexing cues.
HEAR THE CARVER DIGITAL DIFFERENCE.
Just as all CD's are not created equal, neither are Compact Disc Players. Of all the models currently available, only the new DTL-200 MK II (and DTL-50) have the innovative and exacting Bob Carver touches that can substantially enhance your enjoyment of the digital medium.
Audition the new DTL-200 MK II today at your Carver dealer, using a variety of discs. You will be surprised at how audibly it can improve on what is already the best playback medium ever offered.
SPECIFICATIONS. Frequency Response, 5Hz-20kHz @ 0dB, .±-0.2dB.
Total Harmonic Distortion, 0.007%. S/N, -100db. Channel
Separation, 90dB 1KHz.
Dynamic Range, 96dB.
Wow & Flutter unmeasurable
Programming, 12-track remote and manual.
CARVER PO Box 1237 Lynnwood. WA 98046
POWERFUL MUSICAL ACCURATE
Introducing "The System" by Proton.
You're looking at the perfect synthesis of advanced electronics, sophisticated design and uncompromising sound. It's "The System," Proton's incomparable new, integrated audio components with remote control.
There's a fully programmable compact disc player that lets you play up to 20 of your favorite selections-in any order-totally free of distortion or noise.
A digital tuner that locks in the precise station frequency for clean, undistorted listening. Powered by a component-quality amp with 22 watts per channel.
An auto-reverse cassette deck with Dolby B Noise Reduction that plays and records in both directions for continuous enjoyment.
And our AL-200, two-way acoustic suspension speaker system. Its 6.5 inch woofer and wide dispersion dome tweeter deliver sound so breathtaking, you simply won't believe your ears.
Even the sleek, comfortable remote control is a work of art that's exception ally easy to work. While you may find a system with similar components as "The System': that's where the similarity ends. Because when it comes to sound, nothing comes remotely close.
Call for your free Ultimate Systems Guide. Proton's Ultimate Systems Guide for Audio/Videophiles tells you all about the innovative technology and design in our renowned line. For your copy, and the name of the Proton retailer nearest you, call (800) 772-0172.
In California, (800) 428-1006.
PROTON--CLEARLY THE BEST
737 W. Artesia Blvd., Compton, CA 90220
(Audio magazine, Oct. 1988)
